#include <modm/driver/inertial/bmi270_transport.hpp>

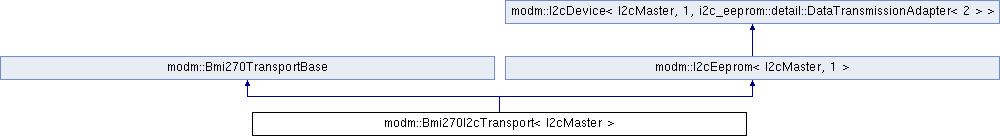

Inheritance diagram for modm::Bmi270I2cTransport< I2cMaster >:

Public Types
enum	I2cAddress : uint8_t { SdoLow = 0x68, SdoHigh = 0x69 }

enum	Register : uint8_t { ChipId = 0x00, Error = 0x02, Status = 0x03, AccDataXLow = 0x0C, GyroDataXLow = 0x12, SensorTime0 = 0x18, InterruptStatus0 = 0x1C, InterruptStatus1 = 0x1D, InternalStatus = 0x21, Temperature0 = 0x22, FifoLength0 = 0x24, FifoData = 0x26, FeatPage = 0x2F, Features = 0x30, AccConf = 0x40, AccRange = 0x41, GyroConf = 0x42, GyroRange = 0x43, FifoDowns = 0x45, FifoWtm0 = 0x46, FifoConfig0 = 0x48, ErrRegMask = 0x52, Int1IoCtrl = 0x53, Int2IoCtrl = 0x54, IntLatch = 0x55, IntMapData = 0x58, InitControl = 0x59, InitAddress0 = 0x5B, InitAddress1 = 0x5C, InitData = 0x5E, InternalError = 0x5F, AuxIfTrim = 0x68, GyroCrtConf = 0x69, NvmConf = 0x6A, IfConf = 0x6B, Drv = 0x6C, NvConf = 0x70, Offset0 = 0x71, Offset3 = 0x74, Offset6 = 0x77, GyroUserGain0 = 0x78, PowerConf = 0x7C, PowerCtrl = 0x7D, Command = 0x7E }

Public Member Functions
	Bmi270I2cTransport (I2cAddress=I2cAddress::SdoLow)

	Bmi270I2cTransport (const Bmi270I2cTransport &) = delete

Bmi270I2cTransport &	operator= (const Bmi270I2cTransport &) = delete

void	initialize ()

std::span< uint8_t >	readRegisters (Register startReg, uint8_t count)

bool	writeRegister (Register reg, uint8_t data)

bool	writeRegisters (Register startReg, std::span< const uint8_t > data)

bool	readFifoData (std::span< uint8_t > data)

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint32_t address, uint8_t *data, std::size_t length)
	Read block.

bool	read (uint16_t address, T &data)

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	readByte (uint32_t address, uint8_t &data)
	Read byte.

void	setAddress (uint8_t address)

bool	write (uint32_t address, const uint8_t *data, std::size_t length)

bool	write (uint32_t address, const T &data)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeByte (uint32_t address, uint8_t data)

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Static Public Attributes
static constexpr uint8_t	MaxRegisterSequence {32}

Protected Member Functions
bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

Protected Attributes
i2c_eeprom::detail::DataTransmissionAdapter< 2 >	transaction

Detailed Description

template<typename I2cMaster>
class modm::Bmi270I2cTransport< I2cMaster >

BMI270 I2C transport. Pass as template parameter to Bmi270 driver class.

Template Parameters

I2cMaster I2C master the device is connected to

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

bool modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

bool modm::I2cEeprom< I2cMaster, 2 >::read	(	uint16_t	address,
		T &	data
	)

inheritedinline

Convenience function

Shortcut for:

return read(address, static_cast<uint8_t *>(&data), sizeof(T));

void modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

bool modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

bool modm::I2cEeprom< I2cMaster, 2 >::write	(	uint32_t	address,
		const T &	data
	)

inheritedinline

Convenience function

Shortcut for:

return write(address, static_cast<const uint8_t *>(&data), sizeof(T));

bool modm::I2cEeprom< I2cMaster, 2 >::write	(	uint32_t	address,
		const uint8_t *	data,
		std::size_t	length
	)

inherited

Write block

Parameters

address	Address
data	Data block
length	Number of bytes to be written

Returns: true if the data could be written, false otherwise

bool modm::I2cEeprom< I2cMaster, 2 >::writeByte	(	uint32_t	address,
		uint8_t	data
	)

inheritedinline

Write byte

Parameters

address	Address
data	Data byte

Returns: true if the data could be written, false otherwise

The documentation for this class was generated from the following file:

bmi270_transport.hpp
