modm::platform::GpioStatic< detail::DataUnused > Class Reference
Platform HAL » General Purpose I/O (GPIO)

#include <modm/platform/gpio/unused.hpp>

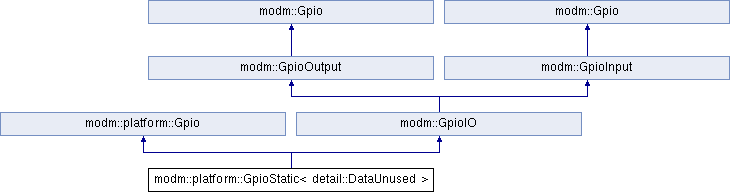

Inheritance diagram for modm::platform::GpioStatic< detail::DataUnused >:
modm::platform::Gpio modm::GpioIO modm::GpioOutput modm::GpioInput modm::Gpio modm::Gpio

Classes

struct  Ain0

struct  Ain1

struct  Aref

struct  BitBang

struct  Di

struct  Do

struct  In0

struct  In1

struct  In2

struct  Oc0a

struct  Oc0b

struct  Oc1a

struct  Oc1ainv

struct  Oc1b

struct  Oc1binv

struct  Scl

struct  Sda

struct  T0

struct  Usck


Public Typedefs

using Output = GpioUnused

using Input = GpioUnused

using IO = GpioUnused

using Type = GpioUnused

using Data = detail::DataUnused


Public Types

enum  InputTrigger : uint8_t { InputTrigger::LowLevel = 0b00, InputTrigger::BothEdges = 0b01, InputTrigger::FallingEdge = 0b10, InputTrigger::RisingEdge = 0b11 }
 Each External Interrupt can be configured to trigger on these conditions. More...

enum  InputType : uint8_t { InputType::Floating, InputType::PullUp }
 Each Input Pin can be configured in one of these states. More...

enum  OutputType : uint8_t { OutputType::PushPull }

enum  Port { B }
 Available ports on this device.

enum  Signal {
  BitBang, Ain0, Ain1, Aref,
  Di, Do, In0, In1,
  In2, Oc0a, Oc0b, Oc1a,
  Oc1ainv, Oc1b, Oc1binv, Scl,
  Sda, T0, Usck
}

enum  Direction { In = 0, Out = 1, InOut = 2, Special = 3 }
 Declares the direction of a GPIO.

enum  Direction { In = 0, Out = 1, InOut = 2, Special = 3 }
 Declares the direction of a GPIO.


Static Public Member Functions

static void setOutput ()

static void setOutput (bool)

static void setOutput (OutputType)

static void configure (OutputType)

static void set ()

static void set (bool)

static void reset ()

static bool isSet ()

static void toggle ()

static void setInput ()

static void setInput (InputType)

static void configure (InputType)

static bool read ()

static Direction getDirection ()

static void disconnect ()

static bool isSet ()

static void reset ()
 set output to low level

static void set ()
 set output to high level

static void set (bool value)
 set output to high or low level

static void setOutput ()
 configure pin as output

static void setOutput (bool value)
 configure pin as output and set high or low

static void toggle ()
 toggle output level


Static Public Attributes

static constexpr bool isInverted = false

static constexpr Port port = Port(-1)

static constexpr uint8_t pin = uint8_t(-1)

static constexpr uint8_t mask = 0

static constexpr bool High = true

static constexpr bool High = true

static constexpr bool Low = false

static constexpr bool Low = false

static constexpr Direction direction = Direction::InOut
 Declares the Pin direction.

static constexpr Direction direction = Direction::Out
 Declares the Pin direction.


Detailed Description

Dummy implementation of an I/O pin.

This class can be used when a pin is not required. All functions are dummy functions which do nothing. read() will always return false.

For example when creating a software SPI with the modm::SoftwareSimpleSpi class and the return channel (MISO - Master In Slave Out) is not needed, a good way is to use this class as a parameter when defining the SPI class.

Example:

#include <modm/architecture/platform.hpp>
namespace pin
{
typedef GpioOutputD7 Clk;
typedef GpioOutputD5 Mosi;
}
modm::SoftwareSpiMaster< pin::Clk, pin::Mosi, GpioUnused > Spi;
...
Spi::write(0xaa);
Author
Fabian Greif
Niklas Hauser

Member Enumeration Documentation

enum modm::platform::Gpio::InputTrigger : uint8_t
inheritedstrong

Each External Interrupt can be configured to trigger on these conditions.

Enum ValuesDocumentation
LowLevel

triggers continuously during low level

BothEdges

triggers on both rising and falling edge

FallingEdge

triggers on falling edge

RisingEdge

triggers on rising edge

enum modm::platform::Gpio::InputType : uint8_t
inheritedstrong

Each Input Pin can be configured in one of these states.

Enum ValuesDocumentation
Floating

The input pin is left floating.

PullUp

The input pin is pulled to Vcc.

enum modm::platform::Gpio::OutputType : uint8_t
inheritedstrong
Enum ValuesDocumentation
PushPull

push-pull on output

Member Function Documentation

static bool modm::GpioOutput::isSet ( )
inheritedstatic

Returns the set logical output state of the pin. This may be different from the physical state!

Member Data Documentation

constexpr bool modm::Gpio::Low = false
inheritedstaticconstexpr

These constants refer to the logical state of the GPIO. The physical state is determined by the configuration and external connection.

constexpr bool modm::Gpio::Low = false
inheritedstaticconstexpr

These constants refer to the logical state of the GPIO. The physical state is determined by the configuration and external connection.
