modm::pca8574< I2cMaster > Class Template Reference
External Device Drivers » PCA8574 8-Bit I/O Expander

#include <modm/driver/gpio/pca8574.hpp>

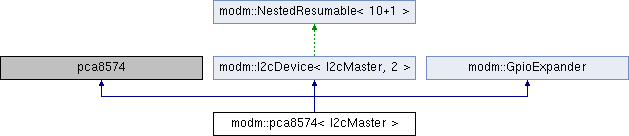

Inheritance diagram for modm::pca8574< I2cMaster >:
modm::I2cDevice< I2cMaster > modm::GpioExpander

Public Typedefs

typedef modm::Flags8< Pin > Pins

using PortType = uint8_t

template<Pca8574< I2cMaster > & object, Pin StartPin, uint8_t Width, GpioPort::DataOrder DataOrder = GpioPort::DataOrder::Normal>
using Port = GpioExpanderPort< Pca8574< I2cMaster >, object, StartPin, Width, DataOrder >
 Alias-templates for simpler use of the Port.

template<Pca8574< I2cMaster > & object>
using P0 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P0 >

template<Pca8574< I2cMaster > & object>
using P1 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P1 >

template<Pca8574< I2cMaster > & object>
using P2 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P2 >

template<Pca8574< I2cMaster > & object>
using P3 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P3 >

template<Pca8574< I2cMaster > & object>
using P4 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P4 >

template<Pca8574< I2cMaster > & object>
using P5 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P5 >

template<Pca8574< I2cMaster > & object>
using P6 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P6 >

template<Pca8574< I2cMaster > & object>
using P7 = GpioExpanderPin< Pca8574< I2cMaster >, object, Pin::P7 >


Public Types

enum  Pin : uint8_t {
  P0 = (1 << 0), P1 = (1 << 1), P2 = (1 << 2), P3 = (1 << 3),
  P4 = (1 << 4), P5 = (1 << 5), P6 = (1 << 6), P7 = (1 << 7)
}


Public Member Functions

 Pca8574 (uint8_t address=0x27)
 Constructor, sets address to default of 0x27.

bool setOutput (Pins pins)

bool set (Pins pins)

bool reset (Pins pins)

bool toggle (Pins pins)

bool set (Pins pins, bool value)

bool isSet (Pin pin) const

modm::Gpio::Direction getDirection (Pin) const

bool setInput (Pins pins)

bool read (Pins pins) const

bool readInput ()

bool writePort (PortType value)

bool readPort (PortType &value)

Pins getOutputs ()

Pins getInputs ()

Pins getDirections ()
 0 is input, 1 is output

void attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool ping ()

bool read (uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

void setAddress (uint8_t address)

bool write (const uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

bool writeRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Starts a write-read transaction and waits until finished.

Pins getDirections () const
 Returns the direction bits: 0 for Input, 1 for Output.

Pins getInputs () const
 Returns the input bits: 0 for low, 1 for high.

Pins getOutputs () const
 Returns the output bits: 0 for low, 1 for high.

bool read (Pins pins) const

bool reset (Pins pins)

bool set (Pins pins)

bool set (Pins pins, bool value)

bool setInput (Pins pins)
 Sets one or more pins to input.

bool setOutput (Pins pins)
 Sets one or more pins to output.

bool toggle (Pins pins)


Static Public Member Functions

static constexpr uint8_t indexFromPin (Pin pin)


Static Public Attributes

static constexpr uint8_t width = 8


Protected Member Functions

bool isTransactionRunning ()

bool runTransaction ()
 Starts our own transaction and waits until finished.

bool startTransaction ()
 Starts the transaction with our own transaction object.

bool startTransaction (modm::I2cTransaction *transaction)
 Starts the transaction with a separate transaction object.

bool wasTransactionSuccessful ()


Protected Attributes

I2cWriteReadTransaction transaction


Detailed Description

template<class I2cMaster>
class modm::pca8574< I2cMaster >

PCA8574: Remote 8-bit I/O expander for I2C-bus with interrupt

This IO-Expander only has open-drain outputs with weak internal pull-ups.

Author
Sascha Schade
Niklas Hauser

Member Typedef Documentation

template<class I2cMaster >
template<Pca8574< I2cMaster > & object>
using modm::pca8574< I2cMaster >::P0 = GpioExpanderPin< Pca8574<I2cMaster>, object, Pin::P0 >

Alias-templates for simpler use of the Pin

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler  handler)
inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )
inheritedinlineprotected
Returns
true when transaction is busy.
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )
inheritedinline
Return Values
truedevice responds to address
falseno device with address found
bool modm::GpioExpander::read ( Pins  pins) const
inherited

Returns true if all pins have a high level

Warning
This function operates on the buffered input read. You have to call readInput() to update the result.
bool modm::GpioExpander::reset ( Pins  pins)
inherited

Resets one or more pins to logic low

Warning
only modifies pins that have previously been set to output!
bool modm::GpioExpander::set ( Pins  pins)
inherited

Sets one or more pins to logic high

Warning
only modifies pins that have previously been set to output!
bool modm::GpioExpander::set ( Pins  pins,
bool  value
)
inherited

sets one or more pins to high or low level

Warning
only modifies pins that have previously been set to output!
void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t  address)
inheritedinline

Sets a new address of the slave device.

Parameters
addressthe slave address not yet shifted left (address < 128).
bool modm::GpioExpander::toggle ( Pins  pins)
inherited

Toggles one or more pins

Warning
only modifies pins that have previously been set to output!
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )
inheritedinlineprotected
Returns
true when transaction did not return an error.
