#include <modm/driver/temperature/mcp990x.hpp>

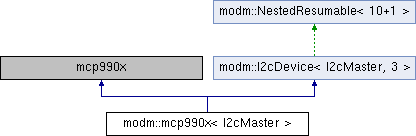

Inheritance diagram for modm::mcp990x< I2cMaster >:

Classes
struct	Data

Public Types
enum	ExternalDiode : uint8_t { Diode1 = 0, Diode2 = 1, Diode3 = 2 }

Public Member Functions
	Mcp990x (Data &data, uint8_t address=0x4d)

bool	initialize ()
	Initialize sensor.

bool	ping ()
	Detect sensor.

bool	readInternalTemperature ()

bool	readExternalDiodeTemperature (ExternalDiode diode)

bool	setExternalDiodeIdealityFactor (ExternalDiode diode, uint8_t idealitySetting)

Data &	getData ()

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

void	setAddress (uint8_t address)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Protected Member Functions
bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

Protected Attributes
I2cWriteReadTransaction	transaction

Detailed Description

template<class I2cMaster>
class modm::mcp990x< I2cMaster >

Simple driver for MCP9902/3/4 I2C temperature sensor.

Author: Christopher Durand

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

template<class I2cMaster >

modm::mcp990x< I2cMaster >::Mcp990x	(	Data &	data,
		uint8_t	address = `0x4d`
	)

Parameters

address I2C address, MCP990xT-1: 0x4c, -2: 0x4d, -A: adjustable, see datasheet

template<class I2cMaster >

bool modm::mcp990x< I2cMaster >::readExternalDiodeTemperature ( ExternalDiode diode )

Read external diode temperature sensor

Precondition: sensor is succesfully initialized

template<class I2cMaster >

bool modm::mcp990x< I2cMaster >::readInternalTemperature ( )

Read internal temperature sensor

Precondition: sensor is succesfully initialized

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

template<class I2cMaster >

bool modm::mcp990x< I2cMaster >::setExternalDiodeIdealityFactor	(	ExternalDiode	diode,
		uint8_t	idealitySetting
	)

Set external diode ideality factor See datasheet for values

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

The documentation for this class was generated from the following file:

mcp990x.hpp
