modm::lsm6ds33< I2cMaster > Class Template Reference
External Device Drivers » LSM6DS33 always-on 3D accelerometer and 3D gyroscope

#include <modm/driver/inertial/lsm6ds33.hpp>

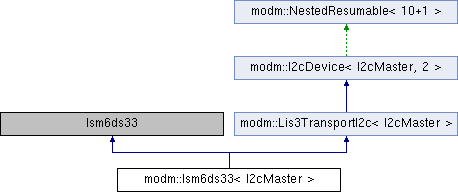

Inheritance diagram for modm::lsm6ds33< I2cMaster >:
modm::Lis3TransportI2c< I2cMaster > modm::I2cDevice< I2cMaster >

Public Typedefs

typedef modm::Configuration< Control1_t, AccDataRate, Bit7|Bit6|Bit5|Bit4 > AccDataRate_t

typedef modm::Configuration< Control1_t, AccScale, Bit3|Bit2 > AccScale_t

typedef modm::Configuration< Control1_t, AccAABandwith, Bit3|Bit2 > AccAABandwith_t

typedef modm::Configuration< Control2_t, GyroDataRate, Bit7|Bit6|Bit5|Bit4 > GyroDataRate_t

typedef modm::Configuration< Control2_t, GyroScale, Bit3|Bit2|Bit1 > GyroScale_t

typedef modm::Configuration< Control7_t, GyroHPCutoff, Bit5|Bit4 > GyroHPCutoff_t

typedef modm::Configuration< Control8_t, AccHPCutoff, Bit5|Bit4 > AccHPCutoff_t


Public Types

enum  Register : uint8_t {
  Register::FIFO_CTRL1 = 0x06, Register::FIFO_CTRL2 = 0x07, Register::FIFO_CTRL3 = 0x08, Register::FIFO_CTRL4 = 0x09,
  Register::FIFO_CTRL5 = 0x0A, Register::ORIENT_CFG_G = 0x0B, Register::INT1_CTRL = 0x0D, Register::INT2_CTRL = 0x0E,
  Register::WHO_AM_I = 0x0F, Register::CTRL1 = 0x10, Register::CTRL2 = 0x11, Register::CTRL3 = 0x12,
  Register::CTRL4 = 0x13, Register::CTRL5 = 0x14, Register::CTRL6 = 0x15, Register::CTRL7 = 0x16,
  Register::CTRL8 = 0x17, Register::CTRL9 = 0x18, Register::CTRL10 = 0x19, Register::STATUS = 0x1E,
  Register::OUT_TEMP_L = 0x20, Register::OUT_TEMP_H = 0x21, Register::OUT_X_L_G = 0x22, Register::OUT_X_H_G = 0x23,
  Register::OUT_Y_L_G = 0x24, Register::OUT_Y_H_G = 0x25, Register::OUT_Z_L_G = 0x26, Register::OUT_Z_H_G = 0x27,
  Register::OUT_X_L_XL = 0x28, Register::OUT_X_H_XL = 0x29, Register::OUT_Y_L_XL = 0x2A, Register::OUT_Y_H_XL = 0x2B,
  Register::OUT_Z_L_XL = 0x2C, Register::OUT_Z_H_XL = 0x2D, Register::FIFO_STATUS1 = 0x3A, Register::FIFO_STATUS2 = 0x3B,
  Register::FIFO_STATUS3 = 0x3C, Register::FIFO_STATUS4 = 0x3D, Register::FIFO_DATA_OUT_L = 0x3E, Register::FIFO_DATA_OUT_H = 0x3F
}

enum  Control1 : uint8_t {
  Control1::ODR3_XL = Bit7, Control1::ODR2_XL = Bit6, Control1::ODR1_XL = Bit5, Control1::ODR0_XL = Bit4,
  Control1::FS1_XL = Bit3, Control1::FS0_XL = Bit2, Control1::BW1_XL = Bit1, Control1::BW0_XL = Bit0
}
 Control register for the acceleration sensor. More...

enum  AccDataRate : uint8_t {
  AccDataRate::Off = 0x00, AccDataRate::Rate_13_Hz = 0x10, AccDataRate::Rate_26_Hz = 0x20, AccDataRate::Rate_52_Hz = 0x30,
  AccDataRate::Rate_104_Hz = 0x40, AccDataRate::Rate_208_Hz = 0x50, AccDataRate::Rate_416_Hz = 0x60, AccDataRate::Rate_833_Hz = 0x70,
  AccDataRate::Rate_1666_Hz = 0x80, AccDataRate::Rate_3332_Hz = 0x90, AccDataRate::Rate_6664_Hz = 0xA0
}
 Output Data Rates for the Acceleration sensor. More...

enum  AccScale : uint8_t { AccScale::Scale_2_G = 0x00, AccScale::Scale_4_G = 0x08, AccScale::Scale_8_G = 0x0C, AccScale::Scale_16_G = 0x04 }
 Full scale of the acceleration sensor data output. More...

enum  AccAABandwith : uint8_t { AccAABandwith::Bw_400_Hz = 0x00, AccAABandwith::Bw_200_Hz = 0x01, AccAABandwith::BW_100_Hz = 0x02, AccAABandwith::Bw_50_Hz = 0x03 }
 Anti aliasing filter bandwith for the acceleration sensor (only used when Control Register 4, Bit 7 is 1) More...

enum  Control2 : uint8_t {
  Control2::ODR3_G = Bit7, Control2::ODR2_G = Bit6, Control2::ODR1_G = Bit5, Control2::ODR0_G = Bit4,
  Control2::FS2_G = Bit3, Control2::FS1_G = Bit2, Control2::FS0_G = Bit1
}
 Control Register 2 for the Gyroscope. More...

enum  GyroDataRate : uint8_t {
  GyroDataRate::Off = 0x00, GyroDataRate::Rate_13_Hz = 0x10, GyroDataRate::Rate_26_Hz = 0x20, GyroDataRate::Rate_52_Hz = 0x30,
  GyroDataRate::Rate_104_Hz = 0x40, GyroDataRate::Rate_208_Hz = 0x50, GyroDataRate::Rate_416_Hz = 0x60, GyroDataRate::Rate_833_Hz = 0x70,
  GyroDataRate::Rate_1666_Hz = 0x80
}
 Output Data Rates for the gyroscope. More...

enum  GyroScale : uint8_t {
  GyroScale::Scale_125_dps = 0x02, GyroScale::Scale_245_dps = 0x00, GyroScale::Scale_500_dps = 0x04, GyroScale::Scale_1000_dps = 0x08,
  GyroScale::Scale_2000_dps = 0x0C
}
 Full scale of the gyroscope data output. More...

enum  Control3 : uint8_t {
  Control3::BOOT = Bit7, Control3::BDU = Bit6, Control3::H_LACTIVE = Bit5, Control3::PP_OD = Bit4,
  Control3::SIM = Bit3, Control3::IF_INC = Bit2, Control3::BLE = Bit1, Control3::SW_RESET = Bit0
}
 Control Register 3. More...

enum  Control4 : uint8_t { Control4::XL_BW_SCAL_ODR = Bit7, Control4::SLEEP_G = Bit6, Control4::INT2_on_INT1 = Bit5, Control4::FIFO_TEMP_EN = Bit4 }
 Control Register 4. More...

enum  Control6 : uint8_t { Control6::TRIG_EN = Bit7, Control6::LVL_EN = Bit6, Control6::LVL2_EN = Bit5, Control6::XL_HM_MODE = Bit4 }
 Control Register 6. More...

enum  Control7 : uint8_t {
  Control7::G_HM_MODE = Bit7, Control7::HP_G_EN = Bit6, Control7::HP_CF_G1 = Bit5, Control7::HP_CF_G0 = Bit4,
  Control7::HP_G_RST = Bit3
}
 Control Register 7. More...

enum  GyroHPCutoff : uint8_t { GyroHPCutoff::Cutoff_0_0081_Hz = 0x00, GyroHPCutoff::Cutoff_0_0324_Hz = 0x10, GyroHPCutoff::Cutoff_2_07_Hz = 0x20, GyroHPCutoff::Cutoff_16_32_Hz = 0x30 }
 High-pass cutoff frequency selection for the gyroscope. More...

enum  Control8 : uint8_t { Control8::LPF_XL_EN = Bit7, Control8::HP_CF_XL1 = Bit6, Control8::HP_CF_XL0 = Bit5, Control8::HP_SLOPE_XL_EN = Bit3 }
 Control Register 8. More...

enum  AccHPCutoff : uint8_t { AccHPCutoff::Cutoff_DIV_50 = 0x00, AccHPCutoff::Cutoff_DIV_100 = 0x10, AccHPCutoff::Cutoff_DIV_9 = 0x20, AccHPCutoff::Cutoff_DIV_400 = 0x30 }
 High-pass cutoff frequency selection for the gyroscope. More...

enum  Control9 : uint8_t { Control9::Z_EN_XL = Bit5, Control9::X_EN_XL = Bit4, Control9::Y_EN_XL = Bit3 }
 Control Register 9. More...

enum  Control10 : uint8_t { Control10::Z_EN_G = Bit5, Control10::X_EN_G = Bit4, Control10::Y_EN_G = Bit3 }
 Control Register 10. More...

enum  Status : uint8_t { Status::EV_BOOT = Bit3, Status::TDA = Bit2, Status::GDA = Bit1, Status::XLDA = Bit0 }
 STATUS is read-only. More...


Public Member Functions

 MODM_FLAGS8 (Control1)

 MODM_FLAGS8 (Control2)

 MODM_FLAGS8 (Control3)

 MODM_FLAGS8 (Control4)

 MODM_FLAGS8 (Control6)

 MODM_FLAGS8 (Control7)

 MODM_FLAGS8 (Control8)

 MODM_FLAGS8 (Control9)

 MODM_FLAGS8 (Control10)

 MODM_FLAGS8 (Status)

 Lsm6ds33 (uint8_t address=0x6A)
 Construct a driver object for the LSM6DS33 chip. More...

bool configureAccelerationSensor (AccDataRate accRate, AccScale accScale)
 Configures the acceleration sensor This method will setup the data rate and the scale with which the sensor will sample the acceleration data. A sample rate has to be set in order to turn on the sensor. More...

bool configureGyroscope (GyroDataRate gyroRate, GyroScale gyroScale)
 Configures the gyroscope This method will setup the data rate and the scale with which the sensor will sample the spin rates. A sample rate has to be set in order to turn on the sensor. More...

bool readAccelerationRaw (Vector3i &acceleration)
 Reads out the raw acceleration data into a given vector object. More...

bool readGyroscopeRaw (Vector3i &spinRates)
 Reads out the raw gyroscope data into a given vector object. More...

AccScale getAccelerationScale ()
 Get the currently configured scale for the acceleration sensor. More...

GyroScale getGyroscopeScale ()
 Get the currently configured scale for the gyroscope. More...

bool readAcceleration (Vector3f &acceleration)
 Reads out the scaled acceleration data in g. More...

bool readGyroscope (Vector3f &spinRates)
 Reads out the scaled spin rates from the gyroscope in degrees per second. More...

void attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool ping ()

bool read (uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

void setAddress (uint8_t address)

bool write (const uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

bool writeRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Starts a write-read transaction and waits until finished.


Protected Member Functions

bool isTransactionRunning ()

bool read (uint8_t reg, uint8_t &value)
 read a 8bit value

bool read (uint8_t reg, uint8_t *buffer, uint8_t length)
 read multiple 8bit values from a start register

bool runTransaction ()
 Starts our own transaction and waits until finished.

bool startTransaction ()
 Starts the transaction with our own transaction object.

bool startTransaction (modm::I2cTransaction *transaction)
 Starts the transaction with a separate transaction object.

bool wasTransactionSuccessful ()

bool write (uint8_t reg, uint8_t value)
 write a 8bit value


Protected Attributes

I2cWriteReadTransaction transaction


Static Protected Attributes

static constexpr float accConvTable [4]

static constexpr float gyroConvTable [4]


Detailed Description

template<class I2cMaster>
class modm::lsm6ds33< I2cMaster >

Template Parameters
I2cMasterI2cMaster interface
Author
Benjamin Carrick

Member Enumeration Documentation

template<class I2cMaster >
enum modm::lsm6ds33::AccAABandwith : uint8_t
strong

Anti aliasing filter bandwith for the acceleration sensor (only used when Control Register 4, Bit 7 is 1)

Enum ValuesDocumentation
Bw_400_Hz

400 Hz

Bw_200_Hz

200 Hz

BW_100_Hz

100 Hz

Bw_50_Hz

50 Hz

template<class I2cMaster >
enum modm::lsm6ds33::AccDataRate : uint8_t
strong

Output Data Rates for the Acceleration sensor.

Enum ValuesDocumentation
Off

Turn off the acceleration sensor.

Rate_13_Hz

13 Hz

Rate_26_Hz

26 Hz

Rate_52_Hz

52 Hz

Rate_104_Hz

104 Hz

Rate_208_Hz

208 Hz

Rate_416_Hz

416 Hz

Rate_833_Hz

833 Hz

Rate_1666_Hz

1666 Hz

Rate_3332_Hz

3332 Hz

Rate_6664_Hz

6664 Hz

template<class I2cMaster >
enum modm::lsm6ds33::AccHPCutoff : uint8_t
strong

High-pass cutoff frequency selection for the gyroscope.

Enum ValuesDocumentation
Cutoff_DIV_50

Acceleration Data Rate / 50.

Cutoff_DIV_100

Acceleration Data Rate / 100.

Cutoff_DIV_9

Acceleration Data Rate / 9.

Cutoff_DIV_400

Acceleration Data Rate / 400.

template<class I2cMaster >
enum modm::lsm6ds33::AccScale : uint8_t
strong

Full scale of the acceleration sensor data output.

Enum ValuesDocumentation
Scale_2_G

+- 2g

Scale_4_G

+- 4g

Scale_8_G

+- 8g

Scale_16_G

+- 16g

template<class I2cMaster >
enum modm::lsm6ds33::Control1 : uint8_t
strong

Control register for the acceleration sensor.

Enum ValuesDocumentation
ODR3_XL

Output data rate bit 3.

ODR2_XL

Output data rate bit 2.

ODR1_XL

Output data rate bit 1.

ODR0_XL

Output data rate bit 0.

FS1_XL

Full scale selection bit 1.

FS0_XL

Full scale selection bit 0.

BW1_XL

Anti-aliasing bandwidth bit 1.

BW0_XL

Anti-aliasing bandwidth bit 0.

template<class I2cMaster >
enum modm::lsm6ds33::Control10 : uint8_t
strong

Control Register 10.

Enum ValuesDocumentation
Z_EN_G

Enable Z-Axis for the gyroscope (default 1)

X_EN_G

Enable X-Axis for the gyroscope (default 1)

Y_EN_G

Enable Y-Axis for the gyroscope (default 1)

template<class I2cMaster >
enum modm::lsm6ds33::Control2 : uint8_t
strong

Control Register 2 for the Gyroscope.

Enum ValuesDocumentation
ODR3_G

Output data rate bit 3.

ODR2_G

Output data rate bit 2.

ODR1_G

Output data rate bit 1.

ODR0_G

Output data rate bit 0.

FS2_G

Full scale selection bit 2.

FS1_G

Full scale selection bit 1.

FS0_G

Full scale selection bit 0.

template<class I2cMaster >
enum modm::lsm6ds33::Control3 : uint8_t
strong

Control Register 3.

Enum ValuesDocumentation
BOOT

Reboot memory content.

BDU

Block data update (0 = continous (default), 1 = wait until registers read)

H_LACTIVE

Interrupt activation level (0 = high active(default), 1= low active)

PP_OD

Interrupt pin mode (0 = Push-Pull(default), 1 = Open-Drain)

SIM

SPI Interface Mode (0 = 4 Wire(default), 1 = 3 Wire)

IF_INC

I2C increment register on access (0 = disabled, 1= enabled(default))

BLE

Endianess selection (0 = Little endian(default), 1 = Big endian.

SW_RESET

Software Reset.

template<class I2cMaster >
enum modm::lsm6ds33::Control4 : uint8_t
strong

Control Register 4.

Enum ValuesDocumentation
XL_BW_SCAL_ODR

Manual selection of bandwidth for the acceleration sensor (0 = automatic, 1 = manual)

SLEEP_G

Gyroscope sleep mode enable (default = 0)

INT2_on_INT1

Interrupt 2 output on Interrupt 1 pad (default = 0)

FIFO_TEMP_EN

Enable Temperature output as 4th fifo set.

template<class I2cMaster >
enum modm::lsm6ds33::Control6 : uint8_t
strong

Control Register 6.

Enum ValuesDocumentation
TRIG_EN

Gyroscope data edge-sensitive trigger enable (default = 0)

LVL_EN

Gyroscope data level-sensitive trigger enable (default = 0)

LVL2_EN

Gyroscope level-sensitive latched enable.

XL_HM_MODE

Disable high performance mode for acceleration sensor (default = 0)

template<class I2cMaster >
enum modm::lsm6ds33::Control7 : uint8_t
strong

Control Register 7.

Enum ValuesDocumentation
G_HM_MODE

Disable high performance mode for gyroscope (default = 0)s.

HP_G_EN

Enable high-pass filter for gyroscope (default = 0)

HP_CF_G1

Gyroscope high-pass filter cutoff frequency bit 1.

HP_CF_G0

Gyroscope high-pass filter cutoff frequuency bit 0.

HP_G_RST

Reset high-pass filter for gyroscope.

template<class I2cMaster >
enum modm::lsm6ds33::Control8 : uint8_t
strong

Control Register 8.

Enum ValuesDocumentation
LPF_XL_EN

Enable the low-pass filter for the acceleration sensor.

HP_CF_XL1

Acceleration sensor high-pass filter cutoff frequency bit 1.

HP_CF_XL0

Acceleration sensor high-pass filter cutoff frequency bit 0.

HP_SLOPE_XL_EN

High-pass or slope filter selection.

template<class I2cMaster >
enum modm::lsm6ds33::Control9 : uint8_t
strong

Control Register 9.

Enum ValuesDocumentation
Z_EN_XL

Enable Z-Axis for the acceleration sensor (default 1)

X_EN_XL

Enable X-Axis for the acceleration sensor (default 1)

Y_EN_XL

Enable Y-Axis for the acceleration sensor (default 1)

template<class I2cMaster >
enum modm::lsm6ds33::GyroDataRate : uint8_t
strong

Output Data Rates for the gyroscope.

Enum ValuesDocumentation
Off

Turn off the gyroscope.

Rate_13_Hz

13 Hz

Rate_26_Hz

26 Hz

Rate_52_Hz

52 Hz

Rate_104_Hz

104 Hz

Rate_208_Hz

208 Hz

Rate_416_Hz

416 Hz

Rate_833_Hz

833 Hz

Rate_1666_Hz

1666 Hz

template<class I2cMaster >
enum modm::lsm6ds33::GyroHPCutoff : uint8_t
strong

High-pass cutoff frequency selection for the gyroscope.

Enum ValuesDocumentation
Cutoff_0_0081_Hz

0.0081 Hz

Cutoff_0_0324_Hz

0.0324 Hz

Cutoff_2_07_Hz

2.07 Hz

Cutoff_16_32_Hz

16.32 Hz

template<class I2cMaster >
enum modm::lsm6ds33::GyroScale : uint8_t
strong

Full scale of the gyroscope data output.

Enum ValuesDocumentation
Scale_125_dps

125 degrees per second

Scale_245_dps

245 degrees per second

Scale_500_dps

500 degrees per second

Scale_1000_dps

1000 degrees per second

Scale_2000_dps

2000 degrees per secons

template<class I2cMaster >
enum modm::lsm6ds33::Register : uint8_t
strong
Enum ValuesDocumentation
FIFO_CTRL1

FIFO control register 1.

FIFO_CTRL2

FIFO control register 2.

FIFO_CTRL3

FIFO control register 3.

FIFO_CTRL4

FIFO control register 4.

FIFO_CTRL5

FIFO control register 5.

ORIENT_CFG_G

Orientation config register.

INT1_CTRL

Interrrupt 1 Control register.

INT2_CTRL

Interrrupt 1 Control register.

WHO_AM_I

Contains 0x69.

CTRL1

Control register 1: rw.

CTRL2

Control register 2: rw.

CTRL3

Control register 3: rw.

CTRL4

Control register 4: rw.

CTRL5

Control register 5: rw.

CTRL6

Control register 6: rw.

CTRL7

Control register 7: rw.

CTRL8

Control register 8: rw.

CTRL9

Control register 9: rw.

CTRL10

Control register 10: rw.

STATUS

Status Data Register.

OUT_TEMP_L

Temperature output register low.

OUT_TEMP_H

Temperature output register high.

OUT_X_L_G

Angular rates output x-axis register low.

OUT_X_H_G

Angular rates output x-axis register high.

OUT_Y_L_G

Angular rates output y-axis register low.

OUT_Y_H_G

Angular rates output y-axis register high.

OUT_Z_L_G

Angular rates output z-axis register low.

OUT_Z_H_G

Angular rates output z-axis register high.

OUT_X_L_XL

Acceleration output x-axis register low.

OUT_X_H_XL

Acceleration output x-axis register high.

OUT_Y_L_XL

Acceleration output y-axis register low.

OUT_Y_H_XL

Acceleration output y-axis register high.

OUT_Z_L_XL

Acceleration output z-axis register low.

OUT_Z_H_XL

Acceleration output z-axis register high.

FIFO_STATUS1

Fifo status register 1.

FIFO_STATUS2

Fifo status register 2.

FIFO_STATUS3

Fifo status register 3.

FIFO_STATUS4

Fifo status register 4.

FIFO_DATA_OUT_L

Fifo data output register low.

FIFO_DATA_OUT_H

Fifo data output register high.

template<class I2cMaster >
enum modm::lsm6ds33::Status : uint8_t
strong

STATUS is read-only.

Enum ValuesDocumentation
EV_BOOT

Bootup is running.

TDA

New temperature data available.

GDA

New gyroscope data available.

XLDA

New acceleration sensor data available.

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler  handler)
inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

template<class I2cMaster >
bool modm::lsm6ds33< I2cMaster >::configureAccelerationSensor ( AccDataRate  accRate,
AccScale  accScale
)

Configures the acceleration sensor This method will setup the data rate and the scale with which the sensor will sample the acceleration data. A sample rate has to be set in order to turn on the sensor.

Parameters
accRateThe sample rate for the acceleration sensor
accScaleThe full scale of the acceleration data
Returns
Whether the configuration was successful
template<class I2cMaster >
bool modm::lsm6ds33< I2cMaster >::configureGyroscope ( GyroDataRate  gyroRate,
GyroScale  gyroScale
)

Configures the gyroscope This method will setup the data rate and the scale with which the sensor will sample the spin rates. A sample rate has to be set in order to turn on the sensor.

Parameters
accRateThe sample rate for the gyroscope
accScaleThe full scale of the spin rate data
Returns
Whether the configuration was successful
template<class I2cMaster >
AccScale modm::lsm6ds33< I2cMaster >::getAccelerationScale ( )

Get the currently configured scale for the acceleration sensor.

Returns
AccScale The currently config acceleration data scale
template<class I2cMaster >
GyroScale modm::lsm6ds33< I2cMaster >::getGyroscopeScale ( )

Get the currently configured scale for the gyroscope.

Returns
AccScale The currently config gyroscope data scale
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )
inheritedinlineprotected
Returns
true when transaction is busy.
template<class I2cMaster >
modm::lsm6ds33< I2cMaster >::Lsm6ds33 ( uint8_t  address = 0x6A)

Construct a driver object for the LSM6DS33 chip.

Parameters
addressThe I2C device address of the sensor
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )
inheritedinline
Return Values
truedevice responds to address
falseno device with address found
template<class I2cMaster >
bool modm::lsm6ds33< I2cMaster >::readAcceleration ( Vector3f &  acceleration)

Reads out the scaled acceleration data in g.

Parameters
accelerationA reference to a Vector3f object the data will be written to
Returns
Whether the sensor data have been read
template<class I2cMaster >
bool modm::lsm6ds33< I2cMaster >::readAccelerationRaw ( Vector3i &  acceleration)

Reads out the raw acceleration data into a given vector object.

Parameters
accelerationA reference to a Vector3i object the data will be written to
Returns
Whether the sensor data have been read
template<class I2cMaster >
bool modm::lsm6ds33< I2cMaster >::readGyroscope ( Vector3f &  spinRates)

Reads out the scaled spin rates from the gyroscope in degrees per second.

Parameters
spinRatesA reference to a Vector3f object the data will be written to
Returns
Whether the sensor data have been read
template<class I2cMaster >
bool modm::lsm6ds33< I2cMaster >::readGyroscopeRaw ( Vector3i &  spinRates)

Reads out the raw gyroscope data into a given vector object.

Parameters
spinRatesA reference to a Vector3i object the data will be written to
Returns
Whether the sensor data have been read
void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t  address)
inheritedinline

Sets a new address of the slave device.

Parameters
addressthe slave address not yet shifted left (address < 128).
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )
inheritedinlineprotected
Returns
true when transaction did not return an error.

Member Data Documentation

template<class I2cMaster >
constexpr float modm::lsm6ds33< I2cMaster >::accConvTable[4]
staticprotectedconstexpr
Initial value:
{
0.000061035f,
0.000488281f,
0.00012207f,
0.000244141f
}
template<class I2cMaster >
constexpr float modm::lsm6ds33< I2cMaster >::gyroConvTable[4]
staticprotectedconstexpr
Initial value:
{
0.007476807f,
0.015258789f,
0.030517578f,
0.061035156f
}
The documentation for this class was generated from the following file:
