#include <modm/driver/inertial/hmc6343.hpp>

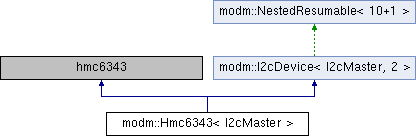

Inheritance diagram for modm::Hmc6343< I2cMaster >:

Classes
struct	Data

Public Types
enum	Register : uint8_t

enum	Register16 : uint8_t

enum	Orientation : uint8_t

enum	OperationMode : uint8_t

enum	MeasurementRate : uint8_t

Public Member Functions
	MODM_FLAGS8 (OperationMode)

	Hmc6343 (Data &data, uint8_t address=0x19)
	Constructor, requires a hmc6343::Data object, sets address to default of 0x19.

bool	readOperationMode ()
	read operation mode register 2

bool	setMeasurementRate (MeasurementRate measurementRate=MeasurementRate::Hz10)
	Configures the sensor to normal orientation mode with 10Hz data rate.

bool	setDeviationAngle (int16_t angle)
	sets a new deviation angle in eeprom

bool	setVariationAngle (int16_t angle)
	sets a new variation angle in eeprom

bool	setIIR_Filter (uint8_t filter)
	sets a new IIR filter in eeprom

bool	getDeviceId (uint16_t &value)
	reads the device id from eeprom

bool	getIIR_Filter (uint8_t &value)
	sets a new IIR filter in eeprom

bool	setOrientation (Orientation orientation)
	Sets the specified orientation.

bool	enterRunMode ()
	enters run mode

bool	enterStandbyMode ()
	enters standby mode

bool	enterSleepMode ()
	enters sleep mode

bool	exitSleepMode ()
	exit sleep mode

bool	enterUserCalibrationMode ()
	enters user calibration mode

bool	exitUserCalibrationMode ()
	exit user calibration mode

bool	resetProcessor ()
	resets the processor, any new command is delayed by 500ms

bool	readAcceleration ()
	reads the Acceleration registers and buffer the results

bool	readMagneticField ()
	reads the Magnetometer registers and buffer the results

bool	readHeading ()
	reads the Heading registers and buffer the results

bool	readTilt ()
	reads the Tilt registers and buffer the results

Data &	getData ()
	Get the data object for this sensor.

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

void	setAddress (uint8_t address)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Protected Member Functions
bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()


bool	writeRegister (Register reg, uint8_t value)
	write a 8bit value into the eeprom More...

bool	writeRegister (Register16 reg, uint16_t value)
	write a 16bit value into the eeprom

bool	readRegister (Register reg, uint8_t &value)
	read a 8bit value from the eeprom

bool	readRegister (Register16 reg, uint16_t &value)
	read a 16bit value from the eeprom

Protected Attributes
I2cWriteReadTransaction	transaction

Detailed Description

template<class I2cMaster>
class modm::Hmc6343< I2cMaster >

Author: Niklas Hauser

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

template<class I2cMaster >

bool modm::Hmc6343< I2cMaster >::writeRegister	(	Register	reg,
		uint8_t	value
	)

protected

write a 8bit value into the eeprom

Use these methods with caution!

The documentation for this class was generated from the following file:

hmc6343.hpp
