#include <modm/driver/pressure/hclax.hpp>

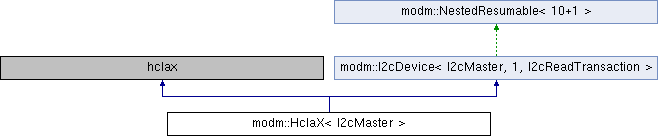

Inheritance diagram for modm::HclaX< I2cMaster >:

Public Member Functions
	HclaX (Data &data)

bool	readPressure ()
	reads the Pressure registers and buffers the results

Data &	getData ()
	Get the data object for this sensor.

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

void	setAddress (uint8_t address)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Protected Member Functions
bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

Detailed Description

Constructor & Destructor Documentation

template<typename I2cMaster >

modm::HclaX< I2cMaster >::HclaX ( Data & data )

inline

Parameters

data	a hclax::Data object

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )

inheritedinlineprotected

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )

inheritedinlineprotected
