modm::pca9535< I2cMaster > Class Template Reference
External Device Drivers » PCA9535 16-Bit I/O Expander

#include <modm/driver/gpio/pca9535.hpp>

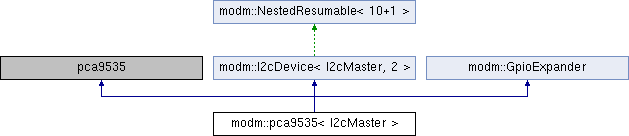

Inheritance diagram for modm::pca9535< I2cMaster >:
modm::I2cDevice< I2cMaster, 2 > modm::GpioExpander modm::NestedResumable< 10+1 >

Public Typedefs

typedef modm::Flags16< Pin > Pins

using PortType = uint16_t

template<Pca9535< I2cMaster > & object, Pin StartPin, uint8_t Width, GpioPort::DataOrder DataOrder = GpioPort::DataOrder::Normal>
using Port = GpioExpanderPort< Pca9535< I2cMaster >, object, StartPin, Width, DataOrder >
 Alias-templates for simpler use of the Port.

template<Pca9535< I2cMaster > & object>
using P0_0 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_0 >

template<Pca9535< I2cMaster > & object>
using P0_1 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_1 >

template<Pca9535< I2cMaster > & object>
using P0_2 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_2 >

template<Pca9535< I2cMaster > & object>
using P0_3 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_3 >

template<Pca9535< I2cMaster > & object>
using P0_4 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_4 >

template<Pca9535< I2cMaster > & object>
using P0_5 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_5 >

template<Pca9535< I2cMaster > & object>
using P0_6 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_6 >

template<Pca9535< I2cMaster > & object>
using P0_7 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P0_7 >

template<Pca9535< I2cMaster > & object>
using P1_0 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_0 >

template<Pca9535< I2cMaster > & object>
using P1_1 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_1 >

template<Pca9535< I2cMaster > & object>
using P1_2 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_2 >

template<Pca9535< I2cMaster > & object>
using P1_3 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_3 >

template<Pca9535< I2cMaster > & object>
using P1_4 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_4 >

template<Pca9535< I2cMaster > & object>
using P1_5 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_5 >

template<Pca9535< I2cMaster > & object>
using P1_6 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_6 >

template<Pca9535< I2cMaster > & object>
using P1_7 = GpioExpanderPin< Pca9535< I2cMaster >, object, Pin::P1_7 >


Public Types

enum  Pin : uint16_t {
  P0_0 = (1 << 0), P0_1 = (1 << 1), P0_2 = (1 << 2), P0_3 = (1 << 3),
  P0_4 = (1 << 4), P0_5 = (1 << 5), P0_6 = (1 << 6), P0_7 = (1 << 7),
  P1_0 = (1 << 8), P1_1 = (1 << 9), P1_2 = (1 << 10), P1_3 = (1 << 11),
  P1_4 = (1 << 12), P1_5 = (1 << 13), P1_6 = (1 << 14), P1_7 = (1 << 15)
}


Public Member Functions

 Pca9535 (uint8_t address=0x20)
 Constructor, sets address to default of 0x20 (range 0x20 - 0x27)

modm::ResumableResult< bool > setOutput (Pins pins)

modm::ResumableResult< bool > set (Pins pins)

modm::ResumableResult< bool > reset (Pins pins)

modm::ResumableResult< bool > toggle (Pins pins)

modm::ResumableResult< bool > set (Pins pins, bool value)

bool isSet (Pin pin) const

modm::Gpio::Direction getDirection (Pin pin) const

modm::ResumableResult< bool > setInput (Pins pins)

modm::ResumableResult< bool > setInvertInput (Pins pins)

modm::ResumableResult< bool > resetInvertInput (Pins pins)

bool read (Pins pins) const

modm::ResumableResult< bool > readInput ()

modm::ResumableResult< bool > writePort (PortType data)

modm::ResumableResult< bool > readPort (PortType &data)

Pins getDirections () const

Pins getOutputs () const

Pins getInputs () const

Pins getPolarities () const

void attachConfigurationHandler (I2c::ConfigurationHandler handler)

modm::ResumableResult< bool > ping ()

void setAddress (uint8_t address)

bool read (Pins pins) const

modm::ResumableResult< bool > readPort (PortType &data)
 Reads the entire port, buffers them and outputs the result to data.

modm::ResumableResult< bool > reset (Pins pins)

modm::ResumableResult< bool > set (Pins pins)

modm::ResumableResult< bool > set (Pins pins, bool value)

modm::ResumableResult< bool > setInput (Pins pins)
 Sets one or more pins to input.

modm::ResumableResult< bool > setOutput (Pins pins)
 Sets one or more pins to output.

modm::ResumableResult< bool > toggle (Pins pins)

modm::ResumableResult< bool > writePort (PortType data)


Static Public Member Functions

static constexpr uint8_t indexFromPin (Pin pin)


Static Public Attributes

static constexpr uint8_t width = 16


Protected Member Functions

modm::ResumableResult< ReturnType > resumable function (...)

int8_t getResumableDepth () const

bool isResumableRunning () const

bool isTransactionRunning ()

modm::ResumableResult< bool > runTransaction ()
 Starts our own transaction and waits until finished.

bool startRead (uint8_t *buffer, std::size_t size)
 Configures the transaction with a read operation and starts it.

bool startTransaction ()
 Starts the transaction with our own transaction object.

bool startTransaction (modm::I2cTransaction *transaction)
 Starts the transaction with a seperate transaction object.

bool startWrite (const uint8_t *buffer, std::size_t size)
 Configures the transaction with a write operation and starts it.

bool startWriteRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Configures the transaction with a write/read operation and starts it.

void stopResumable ()
 Force all resumable functions to stop running at the current nesting level.

bool wasTransactionSuccessful ()


Protected Attributes

I2cWriteReadTransaction transaction


Detailed Description

template<typename I2cMaster>
class modm::pca9535< I2cMaster >

Author
Niklas Hauser

Member Typedef Documentation

template<typename I2cMaster >
template<Pca9535< I2cMaster > & object>
using modm::pca9535< I2cMaster >::P0_0 = GpioExpanderPin< Pca9535<I2cMaster>, object, Pin::P0_0 >

Alias-templates for simpler use of the Pin

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler  handler)
inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

modm::ResumableResult< ReturnType > resumable modm::NestedResumable< 1 >::function (   ...)
inherited

Run the resumable function.

You need to implement this method in you subclass yourself.

Returns
>NestingError if still running, <=NestingError if it has finished.
int8_t modm::NestedResumable< 1 >::getResumableDepth ( ) const
inheritedinline
Returns
the nesting depth in the current resumable function, or -1 if called outside any resumable function
bool modm::NestedResumable< 1 >::isResumableRunning ( ) const
inheritedinline
Returns
true if a resumable function is running at the current nesting level, else false
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )
inheritedinlineprotected
Returns
true when transaction is busy.
modm::ResumableResult<bool> modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )
inheritedinline
Return Values
truedevice responds to address
falseno device with address found
bool modm::GpioExpander::read ( Pins  pins) const
inherited

Returns true if all pins have a high level

Warning
This function operates on the buffered input read. You have to call readInput() to update the result.
modm::ResumableResult<bool> modm::GpioExpander::reset ( Pins  pins)
inherited

Resets one or more pins to logic low

Warning
only modifies pins that have previously been set to output!
modm::ResumableResult<bool> modm::GpioExpander::set ( Pins  pins)
inherited

Sets one or more pins to logic high

Warning
only modifies pins that have previously been set to output!
modm::ResumableResult<bool> modm::GpioExpander::set ( Pins  pins,
bool  value
)
inherited

sets one or more pins to high or low level

Warning
only modifies pins that have previously been set to output!
void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t  address)
inheritedinline

Sets a new address of the slave device.

Parameters
addressthe slave address not yet shifted left (address < 128).
modm::ResumableResult<bool> modm::GpioExpander::toggle ( Pins  pins)
inherited

Toggles one or more pins

Warning
only modifies pins that have previously been set to output!
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )
inheritedinlineprotected
Returns
true when transaction did not return an error.
modm::ResumableResult<bool> modm::GpioExpander::writePort ( PortType  data)
inherited

Writes data to the entire port

Warning
only modifies pins that have previously been set to output!
