#include <modm/driver/pwm/pca9685.hpp>

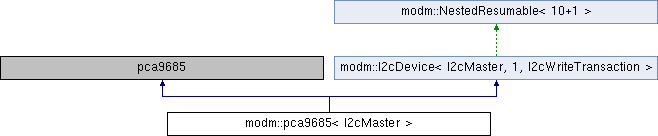

Inheritance diagram for modm::pca9685< I2cMaster >:

Public Types
enum	Register { REG_MODE1 = 0x00, REG_MODE2 = 0x01, REG_SUBADR1 = 0x02, REG_SUBADR2 = 0x03, REG_SUBADR3 = 0x04, REG_ALLCALLADR = 0x05, REG_LED0_ON_L = 0x06, REG_LED0_ON_H = 0x07, REG_LED0_OFF_L = 0x08, REG_LED0_OFF_H = 0x09, REG_LED1_ON_L = 0x0a, REG_LED1_ON_H = 0x0b, REG_LED1_OFF_L = 0x0c, REG_LED1_OFF_H = 0x0d, REG_LED2_ON_L = 0x0e, REG_LED2_ON_H = 0x0f, REG_LED2_OFF_L = 0x10, REG_LED2_OFF_H = 0x11, REG_LED3_ON_L = 0x12, REG_LED3_ON_H = 0x13, REG_LED3_OFF_L = 0x14, REG_LED3_OFF_H = 0x15, REG_LED4_ON_L = 0x16, REG_LED4_ON_H = 0x17, REG_LED4_OFF_L = 0x18, REG_LED4_OFF_H = 0x19, REG_LED5_ON_L = 0x1a, REG_LED5_ON_H = 0x1b, REG_LED5_OFF_L = 0x1c, REG_LED5_OFF_H = 0x1d, REG_LED6_ON_L = 0x1e, REG_LED6_ON_H = 0x1f, REG_LED6_OFF_L = 0x20, REG_LED6_OFF_H = 0x21, REG_LED7_ON_L = 0x22, REG_LED7_ON_H = 0x23, REG_LED7_OFF_L = 0x24, REG_LED7_OFF_H = 0x25, REG_LED8_ON_L = 0x26, REG_LED8_ON_H = 0x27, REG_LED8_OFF_L = 0x28, REG_LED8_OFF_H = 0x29, REG_LED9_ON_L = 0x2a, REG_LED9_ON_H = 0x2b, REG_LED9_OFF_L = 0x2c, REG_LED9_OFF_H = 0x2d, REG_LED10_ON_L = 0x2e, REG_LED10_ON_H = 0x2f, REG_LED10_OFF_L = 0x30, REG_LED10_OFF_H = 0x31, REG_LED11_ON_L = 0x32, REG_LED11_ON_H = 0x33, REG_LED11_OFF_L = 0x34, REG_LED11_OFF_H = 0x35, REG_LED12_ON_L = 0x36, REG_LED12_ON_H = 0x37, REG_LED12_OFF_L = 0x38, REG_LED12_OFF_H = 0x39, REG_LED13_ON_L = 0x3a, REG_LED13_ON_H = 0x3b, REG_LED13_OFF_L = 0x3c, REG_LED13_OFF_H = 0x3d, REG_LED14_ON_L = 0x3e, REG_LED14_ON_H = 0x3f, REG_LED14_OFF_L = 0x40, REG_LED14_OFF_H = 0x41, REG_LED15_ON_L = 0x42, REG_LED15_ON_H = 0x43, REG_LED15_OFF_L = 0x44, REG_LED15_OFF_H = 0x45, REG_ALL_LED_ON_L = 0xfa, REG_ALL_LED_ON_H = 0xfb, REG_ALL_LED_OFF_L = 0xfc, REG_ALL_LED_OFF_H = 0xfd, REG_PRE_SCALE = 0xfe, REG_TestMode = 0xfe }

enum	Mode1 { MODE1_RESTART = 0x80, MODE1_EXTCLK = 0x40, MODE1_AI = 0x20, MODE1_SLEEP = 0x10, MODE1_SUB1 = 0x08, MODE1_SUB2 = 0x04, MODE1_SUB3 = 0x02, MODE1_ALLCALL = 0x01 }

enum	Mode2 { MODE2_INVRT = 0x10, MODE2_OCH = 0x08, MODE2_OUTDRV = 0x04, MODE2_OUTNE1 = 0x02, MODE2_OUTNE0 = 0x01 }

Public Member Functions
	Pca9685 (uint8_t address)

bool	initialize (uint8_t mode1=0, uint8_t mode2=0)

bool	setChannel (uint8_t channel, uint16_t value)

bool	setAllChannels (uint16_t value)

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

void	setAddress (uint8_t address)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Protected Member Functions
bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

Protected Attributes
I2cWriteReadTransaction	transaction

Detailed Description

template<typename I2cMaster>
class modm::pca9685< I2cMaster >

PCA9685 16-channel, 12-bit PWM LED controller, I2C-bus

This class allows for basic (and for most use cases sufficient) control of a PCA9685. It implements initialization (setting of MODE1 and MODE2 registers), writing values for single channels, and writing a value for all channels.

This driver has the following limitations:

no register read access
no arbitrary register write access
no address reconfiguration
registers LED*_ON_* are fixed at 0

Template Parameters

I2cMaster I2C interface

Author: Christian Menard

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

template<typename I2cMaster >

bool modm::pca9685< I2cMaster >::initialize	(	uint8_t	mode1 = `0`,
		uint8_t	mode2 = `0`
	)

Initialize the device.

Note: The bit AI (Auto Increment) in MODE2 register will always be set as it is essential for correct operation of this driver.

Parameters

mode1	value to be written to MODE1 register
mode2	value to be written to MODE2 register

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

template<typename I2cMaster >

modm::pca9685< I2cMaster >::Pca9685 ( uint8_t address )

Constructor.

Parameters

address I2C address

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

template<typename I2cMaster >

bool modm::pca9685< I2cMaster >::setAllChannels ( uint16_t value )

Set all 16 12-bit PWM channels to the same value.

The upper 4 bits of value are masked out to ensure that always a 12-bit value is written.

Parameters

value 12-bit PWM value to be written

template<typename I2cMaster >

bool modm::pca9685< I2cMaster >::setChannel	(	uint8_t	channel,
		uint16_t	value
	)

Set the 12-bit PWM value of a single channel.

Checks if the specified channel is valid (return false otherwise) and masks out the upper 4 bits of value to ensure that always a 12-bit value is written.

Parameters

channel	one of the 16 channels (0-15)
value	12-bit PWM value to be written

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

The documentation for this class was generated from the following file:

pca9685.hpp
