#include <modm/driver/pwm/lp503x.hpp>

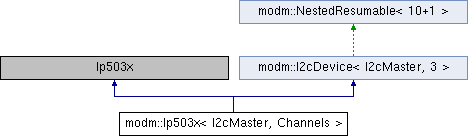

Inheritance diagram for modm::lp503x< I2cMaster, Channels >:

Public Typedefs
using	RegisterValue_t = FlagsGroup< DeviceConfig0_t, DeviceConfig1_t, Reset_t >

Public Types
enum	Register : uint8_t { DeviceConfig0 = 0x00, DeviceConfig1 = 0x01, LedConfig0 = 0x02, LedConfig1 = 0x03, BankBrightness = 0x04, BankAColor = 0x05, BankBColor = 0x06, BankCColor = 0x07, Led0Brightness = 0x08, Out0Color = 0x14, Reset = 0x38 }

enum	DeviceConfig0 : uint8_t { ChipEnable = (1 << 6) }

enum	DeviceConfig1 : uint8_t { LedGlobalOff = (1 << 0), HighCurrent = (1 << 1), PwmDithering = (1 << 2), AutoIncrement = (1 << 3), PowerSave = (1 << 4), LogScale = (1 << 5) }

enum	LedBankMode : uint16_t { Led0 = (1 << 0), Led1 = (1 << 1), Led2 = (1 << 2), Led3 = (1 << 3), Led4 = (1 << 4), Led5 = (1 << 5), Led6 = (1 << 6), Led7 = (1 << 7), Led8 = (1 << 8), Led9 = (1 << 9), Led10 = (1 << 10), Led11 = (1 << 11) }

enum	Reset : uint8_t { ResetDevice = 0xff }

Public Member Functions
	MODM_FLAGS8 (DeviceConfig0)

	MODM_FLAGS8 (DeviceConfig1)

	MODM_FLAGS16 (LedBankMode)

	MODM_FLAGS8 (Reset)

	Lp503x (uint8_t i2cAddress)

bool	initialize ()
	Initialize device, call before using any other function.

bool	enable ()
	Enable device.

bool	disable ()
	Disable device.

bool	setConfiguration (DeviceConfig1_t configuration)

bool	setChannelBrightness (uint8_t channel, uint8_t value)

bool	setChannelBrightnessValues (uint8_t startChannel, const uint8_t *values, uint8_t numChannels)

bool	setLedGroupBrightness (uint8_t index, uint8_t value)

bool	setBankModeEnabled (LedBankMode_t bankMode)

bool	setBankBrightness (uint8_t value)

bool	setBankABrightness (uint8_t value)

bool	setBankBBrightness (uint8_t value)

bool	setBankCBrightness (uint8_t value)

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

void	setAddress (uint8_t address)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Public Attributes
DeviceConfig1_t	DefaultConfiguration

Protected Member Functions
bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

Protected Attributes
I2cWriteReadTransaction	transaction

Detailed Description

template<typename I2cMaster, size_t Channels>
class modm::lp503x< I2cMaster, Channels >

LP5030/LP5036 30/36-channel, 12-bit PWM LED controller

Template Parameters

I2cMaster I2C interface

Author: Christopher Durand

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setBankABrightness ( uint8_t value )

Set brightness for all channels 3n configured in bank mode.

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setBankBBrightness ( uint8_t value )

Set brightness for all channels 3n+1 configured in bank mode.

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setBankBrightness ( uint8_t value )

Set bank brightness multiplicator. This controls all channels in bank mode.

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setBankCBrightness ( uint8_t value )

Set brightness for all channels 3n+2 configured in bank mode.

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setBankModeEnabled ( LedBankMode_t bankMode )

Enable bank mode for a led group. This allows to simultaniously dim multiple RGB leds by accessing the global bank registers.

If bank mode is enabled for a led group (3n, 3n+1, 3n+2) its brightnesses are controlled by the global BankAColor, BankBColor, BankCColor registers and the BankBrightness register. The inidividual channel settings are ignored then.

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setChannelBrightness	(	uint8_t	channel,
		uint8_t	value
	)

Set brightness value for individual output channel.

This writes to the OutXColor registers.

If the LogScale flag is set these values are scaled logithmically to 12 bit pwm duty-cycles (default).

Parameters

channel	output channel index
value	8-bit brightness value

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setChannelBrightnessValues	(	uint8_t	startChannel,
		const uint8_t *	values,
		uint8_t	numChannels
	)

Set brightness values for multiple output channels in one transaction.

This writes the OutXColor registers.

Parameters

channel	output channel start index
numChannels	number of values to write
value	8-bit brightness value

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setConfiguration ( DeviceConfig1_t configuration )

Set device configuration AutoIncrement is always set

template<typename I2cMaster , size_t Channels>

bool modm::lp503x< I2cMaster, Channels >::setLedGroupBrightness	(	uint8_t	index,
		uint8_t	value
	)

Set brightness multiplicator for output channel group (3n, 3n+1, 3n+2). Intended for dimming RGB Leds.

When this feature is not required, this function can be ignored. The default of 0xFF corresponds to full on. Then the resulting LED brightness only depends on the individual channel settings.

This setting has no effect when the LED group is configured in bank mode. Then the value from the BankBrightness register is used.

Default value is 0xFF.

Parameters

value 8-bit brightness value

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

Member Data Documentation

template<typename I2cMaster , size_t Channels>

DeviceConfig1_t modm::lp503x< I2cMaster, Channels >::DefaultConfiguration

Initial value:

DeviceConfig1::HighCurrent  |
        DeviceConfig1::PwmDithering |
        DeviceConfig1::PowerSave    |
        DeviceConfig1::LogScale

The documentation for this class was generated from the following file:

lp503x.hpp
