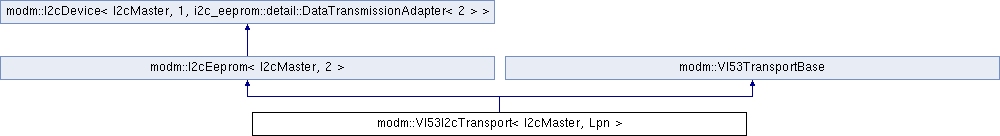

Inheritance diagram for modm::Vl53I2cTransport< I2cMaster, Lpn >:

Public Member Functions
	Vl53I2cTransport (const uint8_t address)

	Vl53I2cTransport (const Vl53I2cTransport &) = delete

Vl53I2cTransport &	operator= (const Vl53I2cTransport &) = delete

uint8_t	writeMulti (uint16_t register_address, const uint8_t *p_values, uint32_t size) override

uint8_t	readMulti (uint16_t register_address, uint8_t *p_values, uint32_t size) override

uint8_t	readByte (uint16_t register_address, uint8_t *p_value) override

uint8_t	writeByte (uint16_t register_address, uint8_t value) override

uint8_t	resetSensor () override

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint32_t address, uint8_t *data, std::size_t length)
	Read block.

bool	read (uint16_t address, T &data)

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	readByte (uint32_t address, uint8_t &data)
	Read byte.

void	setAddress (uint8_t address)

bool	write (uint32_t address, const uint8_t *data, std::size_t length)

bool	write (uint32_t address, const T &data)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeByte (uint32_t address, uint8_t data)

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Protected Member Functions
bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

Protected Attributes
i2c_eeprom::detail::DataTransmissionAdapter< 2 >	transaction

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

bool modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

bool modm::I2cEeprom< I2cMaster, 2 >::read	(	uint16_t	address,
		T &	data
	)

inheritedinline

Convenience function

Shortcut for:

return read(address, static_cast<uint8_t *>(&data), sizeof(T));

void modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

bool modm::I2cDevice< I2cMaster, 10 , i2c_eeprom::detail::DataTransmissionAdapter< 2 > >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

bool modm::I2cEeprom< I2cMaster, 2 >::write	(	uint32_t	address,
		const T &	data
	)

inheritedinline

Convenience function

Shortcut for:

return write(address, static_cast<const uint8_t *>(&data), sizeof(T));

bool modm::I2cEeprom< I2cMaster, 2 >::write	(	uint32_t	address,
		const uint8_t *	data,
		std::size_t	length
	)

inherited

Write block

Parameters

address	Address
data	Data block
length	Number of bytes to be written

Returns: true if the data could be written, false otherwise

bool modm::I2cEeprom< I2cMaster, 2 >::writeByte	(	uint32_t	address,
		uint8_t	data
	)

inheritedinline

Write byte

Parameters

address	Address
data	Data byte

Returns: true if the data could be written, false otherwise

The documentation for this class was generated from the following file:

vl53_transport.hpp
