TestingCanConnector Class Reference
Tests for modm » Tests for Communication Protocols » Tests for XPCC

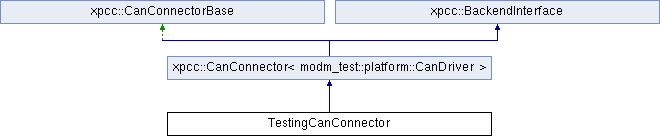

Inheritance diagram for TestingCanConnector:
xpcc::CanConnector< modm_test::platform::CanDriver > xpcc::CanConnectorBase xpcc::BackendInterface

Public Member Functions

 TestingCanConnector (modm_test::platform::CanDriver *driver)

virtual void dropPacket ()

virtual const Header & getPacketHeader () const
 Access the packet.

virtual const modm::SmartPointer getPacketPayload () const

virtual bool isPacketAvailable () const
 Check if a new packet was received by the backend.

virtual void sendPacket (const Header &header, modm::SmartPointer payload)
 Send a Message.

virtual void update ()


Protected Typedefs

typedef modm::LinkedList< ReceiveListItem > ReceiveList

typedef modm::LinkedList< SendListItem > SendList


Protected Member Functions

bool retrieveMessage ()

bool sendMessage (const uint32_t &identifier, const uint8_t *data, uint8_t size)
 Try to send a CAN message via CAN Driver. More...

void sendWaitingMessages ()


Static Protected Member Functions

static bool convertToHeader (const uint32_t &identifier, Header &header)
 Convert a can identifier to a packet header. More...

static uint32_t convertToIdentifier (const Header &header, bool fragmentated)
 Convert a packet header to a can identifier.

static uint8_t getNumberOfFragments (uint8_t messageSize)
 Calculate the number of fragments needed to send a message with a length of messageSize.

static bool isFragment (const uint32_t &identifier)


Protected Attributes

modm_test::platform::CanDriver * canDriver

ReceiveList pendingMessages

ReceiveList receivedMessages

SendList sendList


Static Protected Attributes

static uint8_t messageCounter = 0


Member Function Documentation

bool xpcc::CanConnectorBase::convertToHeader ( const uint32_t &  identifier,
xpcc::Header &  header
)
inheritedstatic

Convert a can identifier to a packet header.

Parameters
[in]identifier29-bit CAN identifier
[out]headerPacket header
Returns
true if the message is part of a fragmented packet, false otherwise.
bool xpcc::CanConnector< modm_test::platform::CanDriver >::sendMessage ( const uint32_t &  identifier,
const uint8_t *  data,
uint8_t  size
)
inheritedprotected

Try to send a CAN message via CAN Driver.

Returns
true if the message could be send, false otherwise
The documentation for this class was generated from the following files:
