modm::is31fl3733< I2cMaster > Class Template Reference
External Device Drivers ยป IS31FL3733 Matrix Driver

#include <modm/driver/display/is31fl3733.hpp>

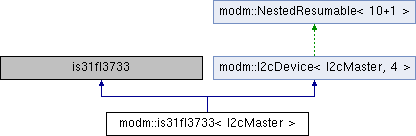

Inheritance diagram for modm::is31fl3733< I2cMaster >:
modm::I2cDevice< I2cMaster, 4 > modm::NestedResumable< 10+1 >

Classes

struct  LedData


Public Typedefs

using LedBinaryData = uint16_t[SizeX]


Public Types

enum  Addr : uint8_t { GND = 0b00, SCL = 0b01, SDA = 0b10, VCC = 0b11 }

enum  Register : uint16_t {
  LED_ON_OFF = 0x8000, LED_OPEN = 0x8018, LED_SHORT = 0x8030, PWM = 0x8100,
  AUTO_BREATH_MODE = 0x8200, CONFIGURATION = 0x8300, GLOBAL_CURRENT_CONTROL = 0x8301, ABM_1 = 0x8302,
  ABM_2 = 0x8306, ABM_3 = 0x830A, TIME_UPDATE = 0x830E, SW_PULL_UP = 0x830F,
  CS_PULL_DOWN = 0x8310, RESET = 0x8311, COMMAND = 0xFD, COMMAND_WRITE_LOCK = 0xFE,
  INTERRUPT_MASK = 0xF0, INTERRUPT_STATUS = 0xF1
}

enum  Resistor : uint8_t {
  None = 0, kOhm_0_5 = 1, kOhm_1 = 2, kOhm_2 = 3,
  kOhm_4 = 4, kOhm_8 = 5, kOhm_16 = 6, kOhm_32 = 7
}


Public Member Functions

 Is31fl3733 (uint8_t address=addr ())

bool enable (uint8_t x, uint8_t y)

void enableAll ()

bool disable (uint8_t x, uint8_t y)

void disableAll ()

bool setPwm (uint8_t x, uint8_t y, uint8_t pwm)

void setAllPwm (uint8_t pwm)

LedBinaryData & ledsOpen ()

LedBinaryData & ledsShort ()

modm::ResumableResult< bool > reset ()

modm::ResumableResult< bool > setGlobalCurrent (uint8_t current)

modm::ResumableResult< bool > clearSoftwareShutdown ()

modm::ResumableResult< bool > setSwPullUp (Resistor value)

modm::ResumableResult< bool > setCsPullDown (Resistor value)

modm::ResumableResult< bool > triggerOpenShortDetection ()

modm::ResumableResult< bool > readOpenShort ()

modm::ResumableResult< bool > writeOnOff ()

modm::ResumableResult< bool > writePwm ()

modm::ResumableResult< bool > writeRegister (Register reg, uint8_t value, uint8_t offset=0)

modm::ResumableResult< bool > readRegister (Register reg, uint8_t *const value, uint8_t offset=0)

void attachConfigurationHandler (I2c::ConfigurationHandler handler)

modm::ResumableResult< bool > ping ()

modm::ResumableResult< bool > read (uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

void setAddress (uint8_t address)

modm::ResumableResult< bool > write (const uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

modm::ResumableResult< bool > writeRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Starts a write-read transaction and waits until finished.


Static Public Member Functions

static constexpr uint8_t addr (Addr addr2=Addr::GND, Addr addr1=Addr::GND)
 Available I2C addresses.


Static Public Attributes

static constexpr uint8_t SizeX {12}

static constexpr uint8_t SizeY {16}


Protected Member Functions

modm::ResumableResult< bool > setPage (Register reg)

int8_t getResumableDepth () const

bool isResumableRunning () const

bool isTransactionRunning ()

modm::ResumableResult< bool > runTransaction ()
 Starts our own transaction and waits until finished.

bool startRead (uint8_t *buffer, std::size_t size)
 Configures the transaction with a read operation and starts it.

bool startTransaction ()
 Starts the transaction with our own transaction object.

bool startTransaction (modm::I2cTransaction *transaction)
 Starts the transaction with a separate transaction object.

bool startWrite (const uint8_t *buffer, std::size_t size)
 Configures the transaction with a write operation and starts it.

bool startWriteRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Configures the transaction with a write/read operation and starts it.

void stopResumable ()

bool wasTransactionSuccessful ()


Static Protected Member Functions

static constexpr bool hasPage (Register reg)

static constexpr uint8_t getPage (Register reg)


Protected Attributes

struct modm::Is31fl3733::LedData modm_packed

uint16_t led_open [SizeX]

uint16_t led_short [SizeX]

LedData data

uint8_t current_page {0xff}

uint8_t buffer [2]

I2cWriteReadTransaction transaction


Static Protected Attributes

static constexpr uint8_t LED_ON_OFF_size = 0x18

static constexpr uint8_t LED_OPEN_size = LED_ON_OFF_size

static constexpr uint8_t LED_SHORT_size = LED_ON_OFF_size

static constexpr uint8_t PWM_size = 0xC0

static constexpr uint8_t AUTO_BREATH_MODE_size = PWM_size


Detailed Description

template<class I2cMaster>
class modm::is31fl3733< I2cMaster >

Author
Niklas Hauser

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler  handler)
inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )
inheritedinlineprotected
Returns
true when transaction is busy.
modm::ResumableResult<bool> modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )
inheritedinline
Return Values
truedevice responds to address
falseno device with address found
void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t  address)
inheritedinline

Sets a new address of the slave device.

Parameters
addressthe slave address not yet shifted left (address < 128).
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )
inheritedinlineprotected
Returns
true when transaction did not return an error.
