modm::GpioIO Class Reference
Architecture Interfaces » General Purpose Input/Output

#include <modm/architecture/interface/gpio.hpp>

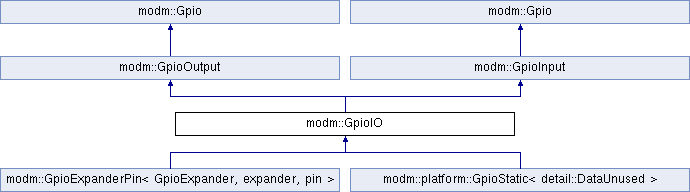

Inheritance diagram for modm::GpioIO:
modm::GpioOutput modm::GpioInput modm::Gpio modm::Gpio modm::GpioExpanderPin< GpioExpander, expander, pin > modm::platform::GpioStatic< detail::DataUnused >

Public Types

enum  Direction { In = 0, Out = 1, InOut = 2, Special = 3 }
 Declares the direction of a GPIO.

enum  Direction { In = 0, Out = 1, InOut = 2, Special = 3 }
 Declares the direction of a GPIO.


Static Public Member Functions

static Direction getDirection ()
 returns the pin direction at run-time

static bool isSet ()

static void reset ()
 set output to low level

static void set ()
 set output to high level

static void set (bool value)
 set output to high or low level

static void setOutput ()
 configure pin as output

static void setOutput (bool value)
 configure pin as output and set high or low

static void toggle ()
 toggle output level

static bool read ()
 read input

static void setInput ()
 configure pin as input


Static Public Attributes

static constexpr Direction direction = Direction::InOut
 Declares the Pin direction.

static constexpr bool High = true

static constexpr bool Low = false

static constexpr Direction direction = Direction::Out
 Declares the Pin direction.

static constexpr bool High = true

static constexpr bool Low = false


Detailed Description

Input/Output interface of an I/O pin.

Member Function Documentation

static bool modm::GpioOutput::isSet ( )
inheritedstatic

Returns the set logical output state of the pin. This may be different from the physical state!

Member Data Documentation

constexpr bool modm::Gpio::Low = false
inheritedstaticconstexpr

These constants refer to the logical state of the GPIO. The physical state is determined by the configuration and external connection.

constexpr bool modm::Gpio::Low = false
inheritedstaticconstexpr

These constants refer to the logical state of the GPIO. The physical state is determined by the configuration and external connection.

The documentation for this class was generated from the following file:
