#include <modm/ui/display/character_display.hpp>

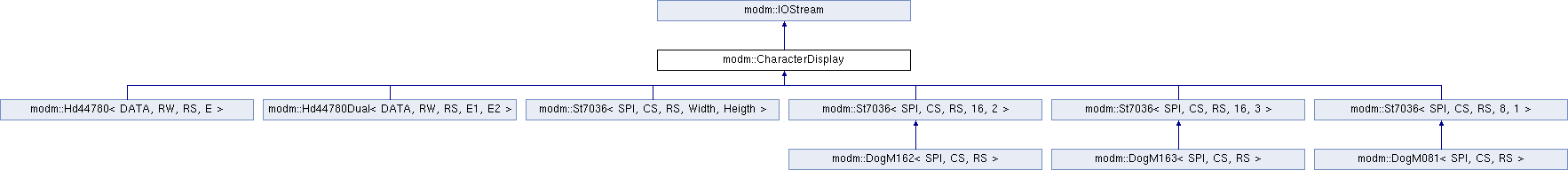

Inheritance diagram for modm::CharacterDisplay:

Classes
class	Writer

Public Types
enum	Command { ClearDisplay = 0b00000001, ResetCursor = 0b00000010, IncrementCursor = 0b00000110, DecrementCursor = 0b00000100, DisableDisplay = 0b00001000, EnableDisplay = 0b00001100, DisableCursor = 0b00001000, EnableCursor = 0b00001010, DisableCursorBlink = 0b00001000, EnableCursorBlink = 0b00001001, ShiftCursorLeft = 0b00010000, ShiftCursorRight = 0b00010100 }

Public Member Functions
	CharacterDisplay (uint8_t width, uint8_t height)
	Constructor.

void	initialize ()
	Initialize the display.

void	write (char c)

virtual void	writeRaw (char c) = 0

void	execute (Command command)

virtual void	setCursor (uint8_t column, uint8_t line) = 0

void	clear ()
	clear the entire display and reset the cursor

IOStream &	ascii ()
	set the output mode to ASCII style for integer types

IOStream &	bin ()
	set the output mode to binary style for integer types

IOStream &	endl ()

IOStream &	flush ()

IOStream &	get (char &c)
	Reads one character and returns it if available. Otherwise, returns IOStream::eof.

IOStream &	get (char *s, size_t n)

template<size_t N>
IOStream &	get (char (&s)[N])

IOStream &	hex ()
	set the output mode to hexadecimal style for integer types

IOStream &	operator<< (const bool &v)

IOStream &	operator<< (const char &v)

IOStream &	operator<< (const uint8_t &v)

IOStream &	operator<< (const int16_t &v)

IOStream &	operator<< (const uint16_t &v)

IOStream &	operator<< (const int32_t &v)

IOStream &	operator<< (const uint32_t &v)

IOStream &	operator<< (const int64_t &v)

IOStream &	operator<< (const uint64_t &v)

IOStream &	operator<< (const int &v)

IOStream &	operator<< (const unsigned int &v)

IOStream &	operator<< (const float &v)

IOStream &	operator<< (const double &v)

IOStream &	operator<< (const char *s)

IOStream &	operator<< (const std::string_view sv)

IOStream &	operator<< (const void *p)
	write the hex value of a pointer

template<class Ret , class... Args>
IOStream &	operator<< (Ret (*pointer)(Args...))
	Write the hex value of any function pointer.

IOStream &	operator<< (IOStream &(*format)(IOStream &))

IOStream &	printf (const char *fmt,...)))

IOStream &	vprintf (const char *fmt, va_list vlist)))

Static Public Attributes
static constexpr char	eof = -1

Protected Member Functions
void	writeBin (uint8_t value)

void	writeDouble (const double &value)

void	writeFloat (float value)

void	writeHex (uint8_t value)

void	writeInteger (int16_t value)

void	writeInteger (uint16_t value)

void	writeInteger (int32_t value)

void	writeInteger (uint32_t value)

void	writeInteger (int64_t value)

void	writeInteger (uint64_t value)

template<typename T >
void	writeIntegerMode (const T v)

void	writePointer (const void *value)

Protected Attributes
Writer	writer

uint8_t	lineWidth

uint8_t	lineCount

uint8_t	column

uint8_t	line

Detailed Description

Base class for alpha-numeric LCDs (liquid crystal display)

About this implementation:

In contrast to other drivers which use static methods, this class is directly derived from modm::IODevice with all the virtual methods because it will be most likely used to create a IOStream which then handles the output to the display.

Therefore creating this class with static methods and using a wrapper class to create a modm::IODevice seems unnecessary complicated.

Author: Fabian Greif

Member Enumeration Documentation

enum modm::CharacterDisplay::Command

Enum Values	Documentation
ClearDisplay	Clear the display content.
ResetCursor	Set cursor to position (0,0)
IncrementCursor	Increments address upon write.
DecrementCursor	Decrements address upon write.
DisableDisplay	Disable display.
EnableDisplay	Enable display.
DisableCursor	Disable cursor.
EnableCursor	Enable cursor.
DisableCursorBlink	Disable blinking cursor.
EnableCursorBlink	Enable blinking cursor.
ShiftCursorLeft	Shift cursor left.
ShiftCursorRight	Shift cursor right.

Member Function Documentation

void modm::CharacterDisplay::execute ( Command command )

Excute a command.

See also: Command

Parameters

command Command to execute

IOStream & modm::IOStream::get	(	char *	s,
		size_t	n
	)

inherited

reads characters into NULL delimited c string in contrast to the standard implementation, this does not care about newline characters in the input

virtual void modm::CharacterDisplay::setCursor	(	uint8_t	column,
		uint8_t	line
	)

pure virtual

Set cursor to specified position

Parameters

column	horizontal position
line	vertical position

Implemented in modm::Hd44780Dual< DATA, RW, RS, E1, E2 >, modm::Hd44780< DATA, RW, RS, E >, modm::St7036< SPI, CS, RS, Width, Heigth >, modm::St7036< SPI, CS, RS, 16, 3 >, modm::St7036< SPI, CS, RS, 16, 2 >, and modm::St7036< SPI, CS, RS, 8, 1 >.

void modm::CharacterDisplay::write ( char c )

Write a character

This method provides an automatic wrap-round if the output reaches the end of the current line or a newline character is detected.

Use writeRaw() if this behavior is not wanted.

virtual void modm::CharacterDisplay::writeRaw ( char c )

pure virtual

Write a raw character at cursor position

Unlike write() no further processing will occur.

See also: write()

Implemented in modm::Hd44780Dual< DATA, RW, RS, E1, E2 >, modm::Hd44780< DATA, RW, RS, E >, modm::St7036< SPI, CS, RS, Width, Heigth >, modm::St7036< SPI, CS, RS, 16, 3 >, modm::St7036< SPI, CS, RS, 16, 2 >, and modm::St7036< SPI, CS, RS, 8, 1 >.

The documentation for this class was generated from the following files:

character_display.hpp
character_display.cpp
