modm::platform::AdcInterrupt Class Reference
Platform HAL » Analog-to-Digital Converter (ADC)

#include <modm/platform/adc/adc_interrupt.hpp>

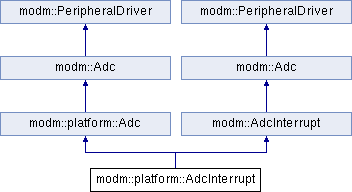

Inheritance diagram for modm::platform::AdcInterrupt:
modm::platform::Adc modm::AdcInterrupt modm::Adc modm::Adc modm::PeripheralDriver modm::PeripheralDriver

Public Typedefs

typedef uint8_t Channel


Public Types

enum  InterruptFlag : uint8_t { All = (1<<ADIF) }

enum  Reference : uint8_t { InternalRef = 0, InternalVddNoCapacitor = 0x40, Internal1V5NoCapacitor = 0x80, Internal1V6NoCapacitor = 0xc0 }


Public Member Functions

 MODM_FLAGS8 (InterruptFlag)


Static Public Member Functions

static void attachInterruptHandler (Handler handler)

static void acknowledgeInterruptFlag ()
 Clears the interrupt flag.

static void acknowledgeInterruptFlags (const InterruptFlag_t flags)
 Clears the interrupt flag if flags is set to InterruptFlag::All

template<uint64_t available, uint64_t requested, percent_t tolerance>
static void assertBaudrateInTolerance ()

template<double available, double requested, percent_t tolerance>
static void assertDurationInTolerance ()

static void configurePurpose ()
 configures a peripheral for a specific purpose

template<class... Signals>
static void connect ()

static void diableFreeRunningMode ()

static void disable ()

static void disableAutoTrigger ()
 Disable auto triggering of the ADC.

static void disableFreeRunningMode ()

static void disableInterrupt ()
 Disables the ADC Conversion Complete Interrupt.

static void enableAutoTrigger ()

static void enableFreeRunningMode ()

static void enableInterrupt ()
 Enables the ADC Conversion Complete Interrupt.

static uint8_t getChannel ()

static bool getInterruptFlag ()

static InterruptFlag_t getInterruptFlags ()

static void getParameter ()
 returns a parameter

static uint16_t getValue ()

template<class SystemClock , frequency_t frequency = kHz(100), percent_t tolerance = pct(10)>
static void initialize ()

static bool isAvddOk ()

static bool isConversionFinished ()

static bool isReferenceVoltageOk ()

static uint16_t readChannel (Channel channel)

static void setAnalogChannelChange ()

static void setAutoTriggerSource (uint8_t source)

static bool setChannel (Channel channel)

static void setLeftAdjustResult ()

static void setParameter ()
 sets a parameter

static void setReference (Reference reference)

static void setRightAdjustResult ()

static void startConversion ()

template<uint64_t available, uint64_t requested, percent_t tolerance>
static void assertBaudrateInTolerance ()

template<double available, double requested, percent_t tolerance>
static void assertDurationInTolerance ()

static void configurePurpose ()
 configures a peripheral for a specific purpose

static void disableFreeRunningMode ()

static void getParameter ()
 returns a parameter

static void setParameter ()
 sets a parameter


Static Public Attributes

static Handler handler

static constexpr uint8_t Resolution = 10


Protected Typedefs

typedef void (* Handler) ()


Detailed Description

Author
Niklas Hauser

Member Function Documentation

template<uint64_t available, uint64_t requested, percent_t tolerance>
static void modm::PeripheralDriver::assertBaudrateInTolerance ( )
inheritedinlinestatic

Since baudrates are usually generated by prescaling a system clock, only several distinct values can be generated. This method checks if the user requested baudrate is within error tolerance of the system achievable baudrate.

template<uint64_t available, uint64_t requested, percent_t tolerance>
static void modm::PeripheralDriver::assertBaudrateInTolerance ( )
inheritedinlinestatic

Since baudrates are usually generated by prescaling a system clock, only several distinct values can be generated. This method checks if the user requested baudrate is within error tolerance of the system achievable baudrate.

static void modm::Adc::disableFreeRunningMode ( )
inheritedstatic

Disables free running mode

The ADC will do only one sample and stop. The result will be in the ADC register.

static void modm::Adc::disableFreeRunningMode ( )
inheritedstatic

Disables free running mode

The ADC will do only one sample and stop. The result will be in the ADC register.

static void modm::platform::Adc::enableAutoTrigger ( )
inheritedinlinestatic

Enable auto triggering of the ADC

The ADC will start a conversion on a positive edge of the selected trigger signal.

See also
setAutoTriggerSource
static bool modm::platform::Adc::getInterruptFlag ( )
inheritedinlinestatic
Returns
true if the flag is set, false otherwise
static InterruptFlag_t modm::platform::Adc::getInterruptFlags ( )
inheritedinlinestatic
Returns
InterruptFlag::All if the flag is set, 0 otherwise
static bool modm::platform::Adc::isAvddOk ( )
inheritedinlinestatic

The analog functions of the ADC are powered from the AVDD domain. AVDD is supplied from an internal voltage regulator. Enabling the ADC will power-up the AVDD domain if not already requested by another functional group of the device. This method allows the user to monitor (poll) the status of the AVDD domain.

Returns
true indicates that AVDD has been powered-up.
static bool modm::platform::Adc::isReferenceVoltageOk ( )
inheritedinlinestatic

The status of the internal generated reference voltage can be monitored through this bit. After enabling the ADC and setting the reference voltage, it will be available after a start-up delay.

Returns
true which indicates that the internal generated reference voltage is approaching final levels.
static uint16_t modm::platform::Adc::readChannel ( Channel  channel)
inheritedinlinestatic

Read the value an analog channel

A normal conversion takes 13 ADC clock cycles. With a clock frequency of for example 200 kHz a conversion therefore needs 65 microseconds. This time increases with a lower frequency.

static void modm::platform::Adc::setAnalogChannelChange ( )
inheritedinlinestatic

The user can force a reset of the analog blocks by setting this without requesting a different channel. The analog blocks of the ADC will be reset to handle possible new voltage ranges. Such a reset phase is especially important for the gain amplifier. It could be temporarily disabled by a large step of its input common voltage leading to erroneous A/D conversion results.

static void modm::platform::Adc::setAutoTriggerSource ( uint8_t  source)
inheritedinlinestatic

Selects which source will trigger an ADC conversion

A conversion will be triggered by the rising edge of the selected Interrupt Flag. Note that switching from a trigger source that is cleared to a trigger source that is set, will generate a positive edge on the trigger signal. Set to 0 to enable Free Running Mode.

static void modm::platform::Adc::setReference ( Reference  reference)
inheritedinlinestatic

voltage reference for the ADC

The internal voltage reference options may not be used if an external reference voltage is being applied to the AREF pin.
