modm::Vl6180< I2cMaster > Class Template Reference
External Device Drivers » VL6180X Proximity Sensor

#include <modm/driver/position/vl6180.hpp>

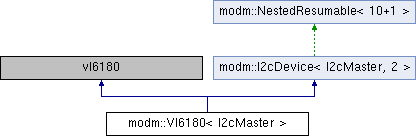

Inheritance diagram for modm::Vl6180< I2cMaster >:
modm::I2cDevice< I2cMaster >

Classes

struct  Data


Public Typedefs

typedef modm::Flags8< InterruptConfig > InterruptConfig_t

typedef modm::Configuration< InterruptConfig_t, InterruptSource, 0x7 > RangeInterruptSource_t

typedef modm::Configuration< InterruptConfig_t, InterruptSource, 0x7, 3 > ALS_InterruptSource_t

typedef modm::Configuration< RangeStatus_t, RangeErrorCode, 0xF0 > RangeErrorCode_t

typedef modm::Configuration< ALS_Status_t, ALS_ErrorCode, 0xF0 > ALS_ErrorCode_t

typedef modm::Flags8< InterruptStatus > InterruptStatus_t

typedef modm::Configuration< InterruptStatus_t, InterruptSource, 0x7 > RangeInterruptStatus_t

typedef modm::Configuration< InterruptStatus_t, InterruptSource, 0x7, 3 > ALS_InterruptStatus_t

typedef modm::Configuration< InterruptStatus_t, InterruptError,(3<< 6)> InterruptError_t

using Control_t = modm::FlagsGroup< GpioMode_t, HistoryControl_t, InterruptConfig_t, InterruptClear_t, Start_t, RangeCheck_t, VhvRecalibrate_t, RangeStatus_t, ALS_Status_t, InterruptStatus_t >


Public Types

enum  Register : uint16_t
 The addresses of the Configuration and Data Registers.

enum  GpioMode : uint8_t
 SYSTEM_MODE_GPIO0 and SYSTEM_MODE_GPIO1.

enum  HistoryControl : uint8_t
 SYSTEM_HISTORY_CTRL.

enum  InterruptConfig
 SYSTEM_INTERRUPT_CONFIG_GPIO.

enum  InterruptSource : uint8_t

enum  InterruptClear : uint8_t
 SYSTEM_INTERRUPT_CLEAR.

enum  Start : uint8_t

enum  RangeCheck : uint8_t
 SYSRANGE_RANGE_CHECK_ENABLES.

enum  VhvRecalibrate : uint8_t
 SYSRANGE_VHV_RECALIBRATE.

enum  AnalogGain : uint8_t
 SYSALS_ANALOGUE_GAIN.

enum  RangeStatus : uint8_t
 RESULT_RANGE_STATUS.

enum  RangeErrorCode : uint8_t

enum  ALS_Status : uint8_t
 RESULT_ALS_STATUS.

enum  ALS_ErrorCode : uint8_t

enum  InterruptStatus
 RESULT_INTERRUPT_STATUS_GPIO.

enum  InterruptError : uint8_t


Public Member Functions

 MODM_FLAGS8 (GpioMode)

 MODM_FLAGS8 (HistoryControl)

 MODM_FLAGS8 (InterruptClear)

 MODM_FLAGS8 (Start)

 MODM_FLAGS8 (RangeCheck)

 MODM_FLAGS8 (VhvRecalibrate)

 MODM_FLAGS8 (RangeStatus)

 MODM_FLAGS8 (ALS_Status)

 Vl6180 (Data &data, uint8_t address=0x29)
 Constructor, requires an vl6180::Data object, sets address to default of 0x29.

bool ping ()

bool initialize ()

bool setDeviceAddress (uint8_t address)

bool setGain (AnalogGain gain)
 Sets a new analog gain for ALS.

bool setIntegrationTime (uint16_t time)

bool readDistance ()
 Reads the distance and buffer the results (can take 10-55ms).

bool readAmbientLight ()

RangeErrorCode getRangeError ()

ALS_ErrorCode getALS_Error ()

template<typename T >
bool updateRegister (Register reg, T setMask, T clearMask=T (0xff))

bool write (Register reg, uint8_t value)
 write a 8bit value a register

Data & getData ()
 the data object for this sensor.

bool read (Register reg, uint8_t *buffer, uint8_t length)
 read multiple 8bit values from a start register

void attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool read (uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

void setAddress (uint8_t address)

bool write (const uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

bool writeRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Starts a write-read transaction and waits until finished.


Protected Member Functions

bool isTransactionRunning ()

bool runTransaction ()
 Starts our own transaction and waits until finished.

bool startTransaction ()
 Starts the transaction with our own transaction object.

bool startTransaction (modm::I2cTransaction *transaction)
 Starts the transaction with a separate transaction object.

bool wasTransactionSuccessful ()


Protected Attributes

I2cWriteReadTransaction transaction


Detailed Description

template<typename I2cMaster>
class modm::Vl6180< I2cMaster >

VL6180X: Proximity and ambient light sensing (ALS) module

This implementation loads the configuration as recommended by the application note AN2424. The class is build for single-shot measurements.

For custom settings use the updateRegister() function.

Author
Niklas Hauser

Member Enumeration Documentation

template<typename I2cMaster >
enum modm::Vl6180::Start : uint8_t
strong

SYSRANGE_START SYSALS_START

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler  handler)
inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )
inheritedinlineprotected
Returns
true when transaction is busy.
template<typename I2cMaster >
bool modm::Vl6180< I2cMaster >::ping ( )

Ping the I2C device. This overwrites the build-in ping method of I2cDevice with a read of the model number.

template<typename I2cMaster >
bool modm::Vl6180< I2cMaster >::readAmbientLight ( )
inline

Reads the ambient light and buffer the results. This takes as long as the chosen integration time (100ms default).

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t  address)
inheritedinline

Sets a new address of the slave device.

Parameters
addressthe slave address not yet shifted left (address < 128).
template<typename I2cMaster >
bool modm::Vl6180< I2cMaster >::setDeviceAddress ( uint8_t  address)

Set a new I2C address (< 128) for this device. The address is not permanent and must be set again after every device boot.

template<typename I2cMaster >
bool modm::Vl6180< I2cMaster >::setIntegrationTime ( uint16_t  time)

Sets a new integration time for ALS.

Parameters
timeintegration time in ms, max ~500ms.
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )
inheritedinlineprotected
Returns
true when transaction did not return an error.
