#include <modm/driver/display/ssd1306.hpp>

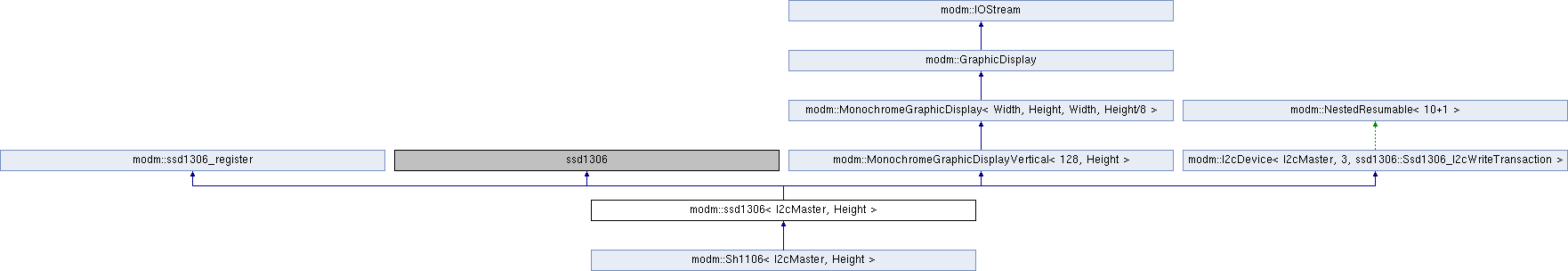

Inheritance diagram for modm::ssd1306< I2cMaster, Height >:

Public Types
enum	ScrollStep : uint8_t { Frames2 = 0b111, Frames3 = 0b100, Frames4 = 0b101, Frames5 = 0b000, Frames25 = 0b110, Frames64 = 0b001, Frames128 = 0b010, Frames256 = 0b011 }

enum	ScrollDirection : uint8_t { Right = HorizontalScrollRight, Left = HorizontalScrollLeft }

enum	DisplayMode : uint8_t { Normal = NormalDisplay, Inverted = InvertedDisplay }

Public Member Functions
	Ssd1306 (uint8_t address=0x3C)

bool	pingBlocking ()
	Pings the display.

bool	initializeBlocking ()
	initializes for 3V3 with charge-pump

void	update () override
	Update the display with the content of the RAM buffer.

bool	isWritable ()

bool	initialize ()
	initializes for 3V3 with charge-pump asynchronously

virtual bool	writeDisplay ()

bool	setDisplayMode (DisplayMode mode=DisplayMode::Normal)

bool	setContrast (uint8_t contrast=0xCE)

bool	setOrientation (glcd::Orientation orientation)

bool	configureScroll (uint8_t origin, uint8_t size, ScrollDirection direction, ScrollStep steps)

bool	enableScroll ()

bool	disableScroll ()

IOStream &	ascii ()
	set the output mode to ASCII style for integer types

IOStream &	bin ()
	set the output mode to binary style for integer types

void	clear () final

void	clearPixel (int16_t x, int16_t y) final

void	clearPixel (glcd::Point p)

void	drawCircle (glcd::Point center, uint16_t radius)

void	drawEllipse (glcd::Point center, int16_t rx, int16_t ry)

void	drawImage (glcd::Point start, modm::accessor::Flash< uint8_t > image)

void	drawImageRaw (glcd::Point start, uint16_t width, uint16_t height, modm::accessor::Flash< uint8_t > data) final

void	drawLine (glcd::Point start, glcd::Point end)

void	drawLine (int16_t x1, int16_t y1, int16_t x2, int16_t y2)

void	drawRectangle (glcd::Point start, uint16_t width, uint16_t height)

void	drawRectangle (int16_t x, int16_t y, uint16_t width, uint16_t height)

void	drawRoundedRectangle (glcd::Point start, uint16_t width, uint16_t height, uint16_t radius)

IOStream &	endl ()

virtual void	fillCircle (glcd::Point center, uint16_t radius)

void	fillRectangle (glcd::Point start, uint16_t width, uint16_t height)

void	fillRectangle (int16_t x, int16_t y, uint16_t width, uint16_t height)

IOStream &	flush ()

IOStream &	get (char &c)
	Reads one character and returns it if available. Otherwise, returns IOStream::eof.

IOStream &	get (char *s, size_t n)

template<size_t N>
IOStream &	get (char (&s)[N])

std::size_t	getBufferHeight () const final

std::size_t	getBufferWidth () const final

glcd::Point	getCursor () const

uint8_t	getFontHeight () const

uint16_t	getHeight () const final

bool	getPixel (int16_t x, int16_t y) const final

uint16_t	getStringWidth (const char *s) const

uint16_t	getWidth () const final

IOStream &	hex ()
	set the output mode to hexadecimal style for integer types

IOStream &	operator<< (const bool &v)

IOStream &	operator<< (const char &v)

IOStream &	operator<< (const uint8_t &v)

IOStream &	operator<< (const int16_t &v)

IOStream &	operator<< (const uint16_t &v)

IOStream &	operator<< (const int32_t &v)

IOStream &	operator<< (const uint32_t &v)

IOStream &	operator<< (const char *s)

IOStream &	operator<< (const std::string_view sv)

IOStream &	operator<< (const void *p)
	write the hex value of a pointer

template<class Ret , class... Args>
IOStream &	operator<< (Ret (*pointer)(Args...))
	Write the hex value of any function pointer.

IOStream &	operator<< (IOStream &(*format)(IOStream &))

void	setCursor (glcd::Point position)

void	setCursor (int16_t x, int16_t y)

void	setCursorX (int16_t x)

void	setCursorY (int16_t y)

void	setFont (const uint8_t *newFont)

void	setFont (const modm::accessor::Flash< uint8_t > *font)

void	setPixel (int16_t x, int16_t y) final

void	setPixel (glcd::Point p)

virtual void	update () = 0

void	write (char c)

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

void	setAddress (uint8_t address)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Static Public Member Functions
static uint8_t	getFontHeight (const modm::accessor::Flash< uint8_t > *font)

static uint16_t	getStringWidth (const char s, const modm::accessor::Flash< uint8_t > font)

Static Public Attributes
static constexpr char	eof = -1

Protected Types
enum	AdressingCommands : uint8_t { MemoryMode = 0x20, ColumnAddress = 0x21, PageAddress = 0x22, PageStartAddress = 0xB0, LowerColumnStartAddress = 0x00, HigherColumnStartAddress = 0x10 }

enum	ChargePump : uint8_t { DISABLE = 0x00, V7_5 = 0x14, V8_5 = 0x94, V9 = 0x95 }

enum	FundamentalCommands : uint8_t { ContrastControl = 0x81, EntireDisplayResumeToRam = 0xA4, EntireDisplayIgnoreRam = 0xA5, NormalDisplay = 0xA6, InvertedDisplay = 0xA7, DisplayOff = 0xAE, DisplayOn = 0xAF }

enum	HardwareConfigCommands : uint8_t { DisplayStartLine = 0x40, SegmentRemap0 = 0xA0, SegmentRemap127 = 0xA1, MultiplexRatio = 0xA8, ComOutputScanDirectionIncrement = 0xC0, ComOutputScanDirectionDecrement = 0xC8, DisplayOffset = 0xD3, ComPinsOrder = 0xDA }

enum	MemoryMode : uint8_t { HORIZONTAL = 0, VERTICAL = 1, PAGE = 2 }

enum	ScrollingCommands : uint8_t { HorizontalScrollRight = 0x26, HorizontalScrollLeft = 0x27, VerticalAndHorizontalScrollRight = 0x29, VerticalAndHorizontalScrollLeft = 0x2A, VerticalScrollArea = 0xA3, DisableScroll = 0x2E, EnableScroll = 0x2F }

enum	TimingAndDrivingCommands : uint8_t { ChargePump = 0x8D, DisplayClockDivideRatio = 0xD5, PreChargePeriod = 0xD9, V_DeselectLevel = 0xDB, Nop = 0xE3 }

enum	Transfer : uint8_t { COMMAND_BURST = 0x00, DATA_BURST = 0x40, COMMAND = 0x80, DATA = 0xC0 }

Protected Member Functions
bool	writeCommands (std::size_t length)

virtual void	initializeMemoryMode ()

virtual void	startWriteDisplay ()

void	drawCircle4 (glcd::Point center, int16_t x, int16_t y)
	helper method for drawCircle() and drawEllipse()

void	drawHorizontalLine (glcd::Point start, uint16_t length) final

void	drawVerticalLine (glcd::Point start, uint16_t length) final

void	writeBin (uint8_t value)

void	writeHex (uint8_t value)

void	writeInteger (int16_t value)

void	writeInteger (uint16_t value)

void	writeInteger (int32_t value)

void	writeInteger (uint32_t value)

template<typename T >
void	writeIntegerMode (const T v)

void	writePointer (const void *value)

bool	isTransactionRunning ()

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

Protected Attributes
uint8_t	commandBuffer [7]

bool	transaction_success

uint8_t	buffer [BufferHeight][BufferWidth]

glcd::Point	cursor

modm::accessor::Flash< uint8_t >	font

Writer	writer

ssd1306::Ssd1306_I2cWriteTransaction	transaction

Detailed Description

template<class I2cMaster, uint8_t Height = 64>
class modm::ssd1306< I2cMaster, Height >

Driver for SSD1306 based OLED-displays using I2C. This display is only rated to be driven with 400kHz, which limits the frame rate to about 40Hz.

Author: Niklas Hauser; Thomas Sommer

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , ssd1306::Ssd1306_I2cWriteTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

void modm::MonochromeGraphicDisplay< Width, Height, BufferWidth, BufferHeight >::clear ( )

inheritedfinalvirtual

Set whole screen to backgroundColor

Implements modm::GraphicDisplay.

void modm::GraphicDisplay::clearPixel ( glcd::Point p )

inheritedinline

Set a pixel to backgroundColor

Parameters

p point

void modm::MonochromeGraphicDisplayVertical< Width, Height >::clearPixel	(	int16_t	x,
		int16_t	y
	)

inheritedfinalvirtual

Set a pixel to backgroundColor

Parameters

x	x-position
y	y-position

Implements modm::GraphicDisplay.

void modm::GraphicDisplay::drawCircle	(	glcd::Point	center,
		uint16_t	radius
	)

inherited

Draw a filled rectangle with rounded corners

Parameters

start	Upper left corner
width	Width of rectangle
height	Height of rectangle
radius	Rounding radius

Draw a circle

Uses the midpoint circle algorithm.

Parameters

center	Center of the circle
radius	Radius of the circle

void modm::GraphicDisplay::drawEllipse	(	glcd::Point	center,
		int16_t	rx,
		int16_t	ry
	)

inherited

Draw an ellipse.

Uses a variation of the midpoint algorithm. May be improved through simplification of the used formula.

Parameters

center	Center of the ellipse
rx	Radius in x-direction
ry	Radius in y-direction

void modm::GraphicDisplay::drawImage	(	glcd::Point	start,
		modm::accessor::Flash< uint8_t >	image
	)

inherited

Draw an image.

The first byte in the image data specifies the with, the second byte the height. Afterwards the actual image data.

Parameters

start	Upper left corner
image	Image data in Flash

See also: drawImage()

void modm::MonochromeGraphicDisplayVertical< Width, Height >::drawImageRaw	(	glcd::Point	start,
		uint16_t	width,
		uint16_t	height,
		modm::accessor::Flash< uint8_t >	data
	)

inheritedfinalvirtual

Draw an image.

Parameters

start	Upper left corner
width	Image width
height	Image height
data	Image data in Flash without any size information.

Reimplemented from modm::GraphicDisplay.

void modm::GraphicDisplay::drawLine	(	glcd::Point	start,
		glcd::Point	end
	)

inheritedinline

Draw a line.

Uses the faster drawHorizontalLine() or drawVerticalLine() if possible, otherwise the line is rastered with the Bresenham line algorithm.

Parameters

start	first point
end	second point

void modm::GraphicDisplay::drawLine	(	int16_t	x1,
		int16_t	y1,
		int16_t	x2,
		int16_t	y2
	)

inherited

Draw a line

Parameters

x1	Start x-position
y1	Start y-position
x2	End x-position
y3	End y-position

void modm::GraphicDisplay::drawRectangle	(	glcd::Point	start,
		uint16_t	width,
		uint16_t	height
	)

inherited

Draw a rectangle.

Parameters

start	Upper left corner
width	Width of rectangle
height	Height of rectangle

void modm::GraphicDisplay::drawRectangle	(	int16_t	x,
		int16_t	y,
		uint16_t	width,
		uint16_t	height
	)

inheritedinline

Draw a rectangle.

Parameters

x	Upper left corner x-position
y	Upper left corner y-position
width	Width of rectangle
height	Height of rectangle

void modm::GraphicDisplay::drawRoundedRectangle	(	glcd::Point	start,
		uint16_t	width,
		uint16_t	height,
		uint16_t	radius
	)

inherited

Draw a rectangle with rounded corners

Parameters

start	Upper left corner
width	Width of rectangle
height	Height of rectangle
radius	Rounding radius

void modm::GraphicDisplay::fillCircle	(	glcd::Point	center,
		uint16_t	radius
	)

inheritedvirtual

Draw a filled circle.

Parameters

center	Center of the circle
radius	Radius of the circle

Reimplemented in modm::ili9341< Interface, Reset, Backlight, BufferSize >.

void modm::GraphicDisplay::fillRectangle	(	glcd::Point	start,
		uint16_t	width,
		uint16_t	height
	)

inherited

Draw a filled rectangle.

Parameters

start	Upper left corner
width	Width of rectangle
height	Height of rectangle

void modm::GraphicDisplay::fillRectangle	(	int16_t	x,
		int16_t	y,
		uint16_t	width,
		uint16_t	height
	)

inheritedinline

Draw a rectangle.

Parameters

x	Upper left corner x-position
y	Upper left corner y-position
width	Width of rectangle
height	Height of rectangle

IOStream & modm::IOStream::get	(	char *	s,
		size_t	n
	)

inherited

reads characters into NULL delimited c string in contrast to the standard implementation, this does not care about newline characters in the input

std::size_t modm::MonochromeGraphicDisplay< Width, Height, BufferWidth, BufferHeight >::getBufferHeight ( ) const

inheritedinlinefinalvirtual

Buffer-array size of second dimension

Implements modm::GraphicDisplay.

std::size_t modm::MonochromeGraphicDisplay< Width, Height, BufferWidth, BufferHeight >::getBufferWidth ( ) const

inheritedinlinefinalvirtual

Buffer-array size of first dimension

Implements modm::GraphicDisplay.

uint8_t modm::GraphicDisplay::getFontHeight ( ) const

inherited

Get the height of a character.

uint16_t modm::MonochromeGraphicDisplay< Width, Height, BufferWidth, BufferHeight >::getHeight ( ) const

inheritedinlinefinalvirtual

Number of pixel in vertical direction.

Implements modm::GraphicDisplay.

uint16_t modm::GraphicDisplay::getStringWidth ( const char * s ) const

inherited

Get the width of (null terminated) string.

uint16_t modm::MonochromeGraphicDisplay< Width, Height, BufferWidth, BufferHeight >::getWidth ( ) const

inheritedinlinefinalvirtual

Number of pixel in horizontal direction.

Implements modm::GraphicDisplay.

bool modm::I2cDevice< I2cMaster, 10 , ssd1306::Ssd1306_I2cWriteTransaction >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

template<class I2cMaster , uint8_t Height = 64>

bool modm::ssd1306< I2cMaster, Height >::isWritable ( )

inline

Use this method to synchronize writing to the displays buffer to avoid tearing.

Returns: true if the frame buffer is not being copied to the display

bool modm::I2cDevice< I2cMaster, 10 , ssd1306::Ssd1306_I2cWriteTransaction >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

void modm::I2cDevice< I2cMaster, 10 , ssd1306::Ssd1306_I2cWriteTransaction >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

void modm::GraphicDisplay::setCursor ( glcd::Point position )

inheritedinline

Set the cursor for text drawing.

Parameters

position Cursor position

void modm::GraphicDisplay::setCursor	(	int16_t	x,
		int16_t	y
	)

inheritedinline

Set the cursor for text drawing.

Parameters

x	Cursor x-position
y	Cursor y-position

void modm::GraphicDisplay::setCursorX ( int16_t x )

inheritedinline

Set the cursor x-position for text drawing.

Parameters

x	Cursor x-position

void modm::GraphicDisplay::setCursorY ( int16_t y )

inheritedinline

Set the cursor y-position for text drawing.

Parameters

y	Cursor y-position

void modm::GraphicDisplay::setFont ( const uint8_t * newFont )

inheritedinline

Set a new font.

Default font is modm::font::FixedWidth5x8.

Parameters

newFont Active font

See also: modm::font

template<class I2cMaster , uint8_t Height = 64>

bool modm::ssd1306< I2cMaster, Height >::setOrientation ( glcd::Orientation orientation )

Parameters

orientation glcd::Orientation::Landscape0 or glcd::Orientation::Landscape180

void modm::GraphicDisplay::setPixel ( glcd::Point p )

inheritedinline

Set a pixel to foregroundColor

Parameters

p point

void modm::MonochromeGraphicDisplayVertical< Width, Height >::setPixel	(	int16_t	x,
		int16_t	y
	)

inheritedfinalvirtual

Set a pixel to foregroundColor

Parameters

x	x-position
y	y-position

Implements modm::GraphicDisplay.

virtual void modm::GraphicDisplay::update ( )

inheritedpure virtual

Transfer the content of the RAM buffer to the real display.

Implemented in modm::Max7219MatrixHorizontal< SPI, CS, COLUMNS, ROWS >, modm::Max7219Matrix< SPI, CS, COLUMNS, ROWS >, modm::St7586s< SPI, CS, RST, DC, Width, Height >, modm::ili9341< Interface, Reset, Backlight, BufferSize >, modm::ParallelTft< INTERFACE >, modm::VirtualGraphicDisplay, modm::St7565< SPI, CS, A0, Reset, Width, Height, TopView >, modm::St7565< SPI, CS, A0, Reset, 132, 32, TopView >, modm::St7565< SPI, CS, A0, Reset, 128, 64, TopView >, modm::St7565< SPI, CS, A0, Reset, 102, 64, TopView >, and modm::Nokia5110< Spi, Ce, Dc, Reset >.

bool modm::I2cDevice< I2cMaster, 10 , ssd1306::Ssd1306_I2cWriteTransaction >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

void modm::GraphicDisplay::write ( char c )

inherited

Write a single character.

The documentation for this class was generated from the following file:

ssd1306.hpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

template<class I2cMaster, uint8_t Height = 64> class modm::ssd1306< I2cMaster, Height >

Member Function Documentation

template<class I2cMaster, uint8_t Height = 64>
class modm::ssd1306< I2cMaster, Height >
