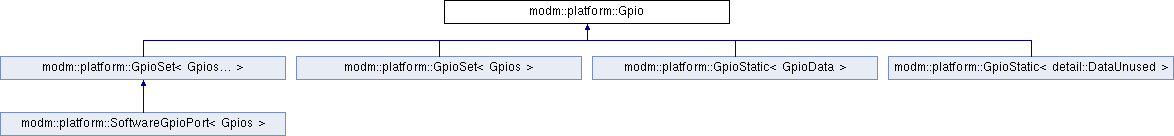

Inheritance diagram for modm::platform::Gpio:

Public Types
enum	InputType : uint8_t { InputType::Floating, InputType::PullUp }
	Each Input Pin can be configured in one of these states. More...

enum	OutputType : uint8_t { OutputType::PushPull }

enum	InputTrigger : uint8_t { InputTrigger::LowLevel = 0b00, InputTrigger::BothEdges = 0b01, InputTrigger::FallingEdge = 0b10, InputTrigger::RisingEdge = 0b11 }
	Each External Interrupt can be configured to trigger on these conditions. More...

enum	Port { B }
	Available ports on this device.

enum	Signal { BitBang, Ain0, Ain1, Oca, Ocb, T }

Member Enumeration Documentation

strong

Each External Interrupt can be configured to trigger on these conditions.

Enum Values	Documentation
LowLevel	triggers continuously during low level
BothEdges	triggers on both rising and falling edge
FallingEdge	triggers on falling edge
RisingEdge	triggers on rising edge

strong

Each Input Pin can be configured in one of these states.

Enum Values	Documentation
Floating	The input pin is left floating.
PullUp	The input pin is pulled to Vcc.

strong

Enum Values	Documentation
PushPull	push-pull on output

The documentation for this struct was generated from the following file:
