modm::ads101x< I2cMaster > Class Template Reference
External Device Drivers » ADS101x ADC

#include <modm/driver/adc/ads101x.hpp>

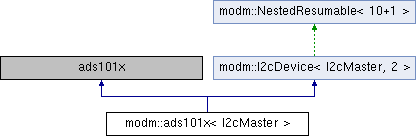

Inheritance diagram for modm::ads101x< I2cMaster >:
modm::I2cDevice< I2cMaster >

Classes

struct  Data


Public Typedefs

typedef Configuration< ConfigRegister_t, FullScaleRange,(Bit11|Bit10|Bit9)> FullScaleRange_t

typedef Configuration< ConfigRegister_t, DeviceOperatingMode, Bit8 > DeviceOperatingMode_t

typedef Configuration< ConfigRegister_t, InputMultiplexer,(Bit14|Bit13|Bit12)> InputMultiplexer_t

typedef Configuration< ConfigRegister_t, DataRate,(Bit7|Bit6|Bit5)> DataRate_t

typedef Configuration< ConfigRegister_t, ComparatorMode, Bit4 > ComparatorMode_t

typedef Configuration< ConfigRegister_t, ComparatorPolarity, Bit3 > ComparatorPolarity_t

typedef Configuration< ConfigRegister_t, ComparatorLatch, Bit2 > ComparatorLatch_t

typedef Configuration< ConfigRegister_t, ComparatorQueue, Bit4 > ComparatorQueue_t


Public Types

enum  Register : uint8_t { Conversion = 0b00, Config = 0b01, LowThreshold = 0b10, HighThreshold = 0b11 }

enum  ConfigRegister : uint16_t {
  OS = Bit15, MUX2 = Bit14, MUX1 = Bit13, MUX0 = Bit12,
  PGA2 = Bit11, PGA1 = Bit10, PGA0 = Bit9, MODE = Bit8,
  DR2 = Bit7, DR1 = Bit6, DR0 = Bit5, COMP_MODE = Bit4,
  COMP_POL = Bit3, COMP_LAT = Bit2, COMP_QUE1 = Bit1, COMP_QUE0 = Bit0
}
 The Config register is used to control the operating mode, input selection, data rate, full-scale range, and comparator modes.

enum  FullScaleRange : uint16_t {
  V6_144 = 0, V4_096 = int(ConfigRegister::PGA0), V2_048 = int(ConfigRegister::PGA1), V1_024 = int(ConfigRegister::PGA1) | int(ConfigRegister::PGA0),
  V0_512 = int(ConfigRegister::PGA2), V0_256 = int(ConfigRegister::PGA2) | int(ConfigRegister::PGA0)
}

enum  DeviceOperatingMode : uint16_t { Continuous = 0, SingleShot = int(ConfigRegister::MODE) }

enum  InputMultiplexer : uint16_t {
  Input0 = 0, Input1 = int(ConfigRegister::MUX0), Input2 = int(ConfigRegister::MUX1), Input3 = int(ConfigRegister::MUX1) | int(ConfigRegister::MUX0),
  Input4 = int(ConfigRegister::MUX2), Input5 = int(ConfigRegister::MUX2) | int(ConfigRegister::MUX0), Input6 = int(ConfigRegister::MUX2) | int(ConfigRegister::MUX1), Input7 = int(ConfigRegister::MUX2) | int(ConfigRegister::MUX1) | int(ConfigRegister::MUX0)
}

enum  DataRate : uint16_t {
  Sps128 = 0, Sps250 = int(ConfigRegister::DR0), Sps490 = int(ConfigRegister::DR1), Sps920 = int(ConfigRegister::DR1) | int(ConfigRegister::DR0),
  Sps1600 = int(ConfigRegister::DR2), Sps2400 = int(ConfigRegister::DR2) | int(ConfigRegister::DR0), Sps3300 = int(ConfigRegister::DR2) | int(ConfigRegister::DR1)
}

enum  ComparatorMode : uint16_t { Traditional = 0, Window = int(ConfigRegister::COMP_MODE) }

enum  ComparatorPolarity : uint16_t { ActiveLow = 0, ActiveHigh = int(ConfigRegister::COMP_POL) }

enum  ComparatorLatch : uint16_t { Nonlatching = 0, Latching = int(ConfigRegister::COMP_LAT) }

enum  ComparatorQueue : uint16_t { OneConversion = 0, TwoConversions = int(ConfigRegister::COMP_QUE0), FourConversions = int(ConfigRegister::COMP_QUE1), Disable = int(ConfigRegister::COMP_QUE1) | int(ConfigRegister::COMP_QUE0) }


Public Member Functions

 MODM_FLAGS16 (ConfigRegister)

 Ads101x (Data &data, uint8_t address=0x49)

bool initialize ()
 Call this function before using the device.

bool isBusy ()
 Determine if the device is currently performing a conversion.

bool startSingleShotConversion ()
 Start a single conversion with the specified input.

bool startContinuousConversion (DataRate dataRate=DataRate::Sps1600)
 Start continuous conversions with the specified datarate and input.

bool startSingleShotConversion (InputMultiplexer input=InputMultiplexer::Input0)

bool startContinuousConversion (InputMultiplexer input=InputMultiplexer::Input0, DataRate dataRate=DataRate::Sps1600)

bool readConversionResult ()

bool enableConversionReadyFunction ()

bool enableComparator (ComparatorMode mode, ComparatorPolarity polarity, ComparatorLatch latch, ComparatorQueue queue)

bool setLowThreshold (uint16_t threshold)

bool setHighThreshold (uint16_t threshold)

bool setFullScaleRange (FullScaleRange fullScaleRange)
 Set the full scale range by programming the PGA and corresponding LSB size.

void attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool ping ()

bool read (uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

void setAddress (uint8_t address)

bool write (const uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

bool writeRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Starts a write-read transaction and waits until finished.


Protected Member Functions

bool isTransactionRunning ()

bool runTransaction ()
 Starts our own transaction and waits until finished.

bool startTransaction ()
 Starts the transaction with our own transaction object.

bool startTransaction (modm::I2cTransaction *transaction)
 Starts the transaction with a separate transaction object.

bool wasTransactionSuccessful ()


Protected Attributes

I2cWriteReadTransaction transaction


Static Protected Attributes

static constexpr float lsbSizeTable []


Detailed Description

template<typename I2cMaster>
class modm::ads101x< I2cMaster >

Template Parameters
I2cMasterI2cMaster interface
Author
Jonas Kazem Andersen
Rasmus Kleist Hørlyck Sørensen

Member Function Documentation

template<typename I2cMaster >
modm::ads101x< I2cMaster >::Ads101x ( Data &  data,
uint8_t  address = 0x49
)
Parameters
data
address
void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler  handler)
inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

template<typename I2cMaster >
bool modm::ads101x< I2cMaster >::enableComparator ( ComparatorMode  mode,
ComparatorPolarity  polarity,
ComparatorLatch  latch,
ComparatorQueue  queue
)

Enable the comparator

Warning
ADS1014 and ADS1015 only
To use the comparator-function the high threshold must be greater than the low threshold
template<typename I2cMaster >
bool modm::ads101x< I2cMaster >::enableConversionReadyFunction ( )

Enable the conversion-ready function of the ALERT/RDY pin

Attention
enabling the conversion-ready function disables the comparator and sets the ComparatorQue value to one conversion
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )
inheritedinlineprotected
Returns
true when transaction is busy.
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )
inheritedinline
Return Values
truedevice responds to address
falseno device with address found
template<typename I2cMaster >
bool modm::ads101x< I2cMaster >::readConversionResult ( )

Read the last conversion result

Attention
Following power-up, the conversion result remains zero until the first conversion is completed
void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t  address)
inheritedinline

Sets a new address of the slave device.

Parameters
addressthe slave address not yet shifted left (address < 128).
template<typename I2cMaster >
bool modm::ads101x< I2cMaster >::setHighThreshold ( uint16_t  threshold)
inline

Set the high threshold used by the comparator queue

Warning
ADS1014 and ADS1015 only
The high threshold value must be greater than the low threshold value
Attention
The high threshold value must be updated whenever the PGA settings are changed
template<typename I2cMaster >
bool modm::ads101x< I2cMaster >::setLowThreshold ( uint16_t  threshold)
inline

Set the low threshold used by the comparator queue

Warning
ADS1014 and ADS1015 only
The low threshold value must be smaller than the high threshold value
Attention
The high threshold value must be updated whenever the PGA settings are changed
template<typename I2cMaster >
bool modm::ads101x< I2cMaster >::startContinuousConversion ( InputMultiplexer  input = InputMultiplexer::Input0,
DataRate  dataRate = DataRate::Sps1600
)

Start continuous conversions with the specified datarate and input

Warning
ADS1015 only
template<typename I2cMaster >
bool modm::ads101x< I2cMaster >::startSingleShotConversion ( InputMultiplexer  input = InputMultiplexer::Input0)

Start a single conversion with the specified input

Warning
ADS1015 only
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )
inheritedinlineprotected
Returns
true when transaction did not return an error.

Member Data Documentation

template<typename I2cMaster >
constexpr float modm::ads101x< I2cMaster >::lsbSizeTable[]
staticprotectedconstexpr
Initial value:
{
0.003f,
0.002f,
0.001f,
0.0005f,
0.00025f,
0.000125f
}
The documentation for this class was generated from the following file:
