modm::Gpio Struct Reference
Architecture Interfaces » General Purpose Input/Output

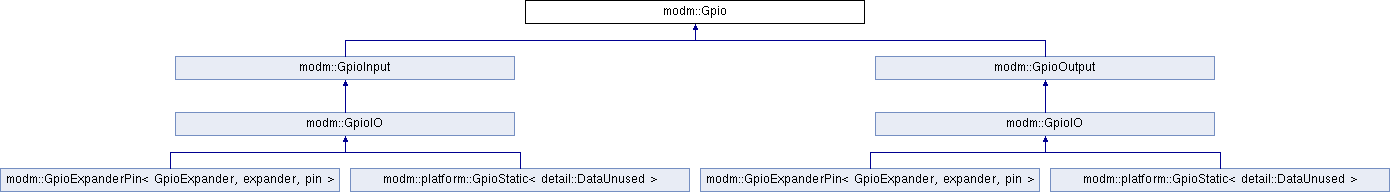

Inheritance diagram for modm::Gpio:
modm::GpioInput modm::GpioOutput modm::GpioIO modm::GpioIO modm::GpioExpanderPin< GpioExpander, expander, pin > modm::platform::GpioStatic< detail::DataUnused > modm::GpioExpanderPin< GpioExpander, expander, pin > modm::platform::GpioStatic< detail::DataUnused >

Public Types

enum  Direction { In = 0, Out = 1, InOut = 2, Special = 3 }
 Declares the direction of a GPIO.


Static Public Attributes

static constexpr bool Low = false

static constexpr bool High = true


Member Data Documentation

constexpr bool modm::Gpio::Low = false
staticconstexpr

These constants refer to the logical state of the GPIO. The physical state is determined by the configuration and external connection.

The documentation for this struct was generated from the following file:
