#include <modm/driver/inertial/lsm303a.hpp>

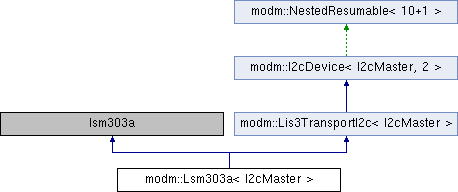

Inheritance diagram for modm::Lsm303a< I2cMaster >:

Classes
struct	Data

Public Typedefs
typedef FlagsGroup< Control1_t, Control2_t, Control3_t, Control4_t, Control5_t, Control6_t, FifoControl_t, IntConfig_t, ClickConfig_t >	Control_t

Public Types
enum	Register : uint8_t

enum	Control1 : uint8_t
	CTRL_REG1 default value is 0x07.

enum	Control2 : uint8_t
	CTRL_REG2 default value is 0x00.

enum	Control3 : uint8_t
	CTRL_REG3 default value is 0x00.

enum	Control4 : uint8_t
	CTRL_REG4 default value is 0x00.

enum	Control5 : uint8_t
	CTRL_REG5 default value is 0x00.

enum	Control6 : uint8_t
	CTRL_REG6 default value is 0x00.

enum	Status : uint8_t
	STATUS is read-only.

enum	FifoControl : uint8_t
	FIFO_CTRL default value is 0x00.

enum	FifoSource : uint8_t
	FIFO_SRC is read-only.

enum	IntConfig : uint8_t
	INT_CFG default value is 0x00.

enum	IntSource : uint8_t
	INT1_SRC default value is 0x00.

enum	ClickConfig : uint8_t
	CLOCK_CFG default value is 0x00.

enum	ClickSource : uint8_t
	CLOCK_SRC default value is 0x00.

enum	FifoMode : uint8_t

enum	MeasurementRate : uint8_t

enum	Scale : uint8_t

Public Member Functions
	MODM_FLAGS8 (Control1)

	MODM_FLAGS8 (Control2)

	MODM_FLAGS8 (Control3)

	MODM_FLAGS8 (Control4)

	MODM_FLAGS8 (Control5)

	MODM_FLAGS8 (Control6)

	MODM_FLAGS8 (Status)

	MODM_FLAGS8 (FifoControl)

	MODM_FLAGS8 (FifoSource)

	MODM_FLAGS8 (IntConfig)

	MODM_FLAGS8 (IntSource)

	MODM_FLAGS8 (ClickConfig)

	MODM_FLAGS8 (ClickSource)

	Lsm303a (Data &data, uint8_t address=0b0011001)
	Constructor, requires a lsm303a::Data object.

bool	configureBlocking (Scale scale, MeasurementRate rate=MeasurementRate::Hz100)

bool	configure (Scale scale, MeasurementRate rate=MeasurementRate::Hz100)

bool	updateControl (Control1_t setMask, Control1_t clearMask=Control1_t (0xff))

bool	updateControl (Control2_t setMask, Control2_t clearMask=Control2_t (0xff))

bool	updateControl (Control3_t setMask, Control3_t clearMask=Control3_t (0xff))

bool	updateControl (Control4_t setMask, Control4_t clearMask=Control4_t (0xff))

bool	updateControl (Control5_t setMask, Control5_t clearMask=Control5_t (0xff))

bool	updateControl (Control6_t setMask, Control6_t clearMask=Control6_t (0xff))

bool	updateFifoControl (FifoControl_t setMask, FifoControl_t clearMask=FifoControl_t (0xff))

bool	readAcceleration ()

Control1_t	getControl1 ()

Control2_t	getControl2 ()

Control3_t	getControl3 ()

Control4_t	getControl4 ()

Control5_t	getControl5 ()

Control6_t	getControl6 ()

uint8_t	getReference ()

FifoControl_t	getFifoControl ()

Status_t	getStatus ()

FifoSource_t	getFifoSource ()

Data &	getData ()
	Get the data object for this sensor.

void	attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool	ping ()

bool	read (uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

void	setAddress (uint8_t address)

bool	write (const uint8_t *buffer, std::size_t size)
	Starts a write transaction and waits until finished.

bool	writeRead (const uint8_t writeBuffer, std::size_t writeSize, uint8_t readBuffer, std::size_t readSize)
	Starts a write-read transaction and waits until finished.

Protected Member Functions
bool	isTransactionRunning ()

bool	read (uint8_t reg, uint8_t &value)
	read a 8bit value

bool	read (uint8_t reg, uint8_t *buffer, uint8_t length)
	read multiple 8bit values from a start register

bool	runTransaction ()
	Starts our own transaction and waits until finished.

bool	startTransaction ()
	Starts the transaction with our own transaction object.

bool	startTransaction (modm::I2cTransaction *transaction)
	Starts the transaction with a separate transaction object.

bool	wasTransactionSuccessful ()

bool	write (uint8_t reg, uint8_t value)
	write a 8bit value

Protected Attributes
I2cWriteReadTransaction	transaction

Detailed Description

template<class I2cMaster>
class modm::Lsm303a< I2cMaster >

Template Parameters

I2cMaster A class conforming to the I2cMaster interface

Author: Niklas Hauser

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler handler )

inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )

inheritedinlineprotected

Returns: true when transaction is busy.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )

inheritedinline

Return Values

true	device responds to address
false	no device with address found

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t address )

inheritedinline

Sets a new address of the slave device.

Parameters

address the slave address not yet shifted left (address < 128).

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )

inheritedinlineprotected

Returns: true when transaction did not return an error.

The documentation for this class was generated from the following file:

lsm303a.hpp

Classes

Public Typedefs

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

template<class I2cMaster> class modm::Lsm303a< I2cMaster >

Member Function Documentation

template<class I2cMaster>
class modm::Lsm303a< I2cMaster >
