modm::Ams5915< I2cMaster > Class Template Reference
External Device Drivers » AMS 5915 Pressure Sensor

#include <modm/driver/pressure/ams5915.hpp>

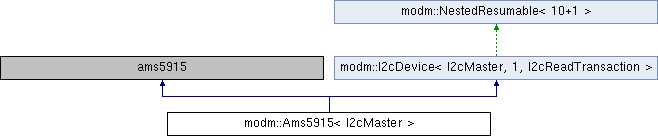

Inheritance diagram for modm::Ams5915< I2cMaster >:
modm::I2cDevice< I2cMaster >

Classes

struct  Data


Public Member Functions

 Ams5915 (Data &data, uint8_t i2cAddress=0x28)

bool readPressure ()
 reads the Pressure registers and buffers the results

Data & getData ()
 Get the data object for this sensor.

void attachConfigurationHandler (I2c::ConfigurationHandler handler)

bool ping ()

bool read (uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

void setAddress (uint8_t address)

bool write (const uint8_t *buffer, std::size_t size)
 Starts a write transaction and waits until finished.

bool writeRead (const uint8_t *writeBuffer, std::size_t writeSize, uint8_t *readBuffer, std::size_t readSize)
 Starts a write-read transaction and waits until finished.


Protected Member Functions

bool isTransactionRunning ()

bool runTransaction ()
 Starts our own transaction and waits until finished.

bool startTransaction ()
 Starts the transaction with our own transaction object.

bool startTransaction (modm::I2cTransaction *transaction)
 Starts the transaction with a separate transaction object.

bool wasTransactionSuccessful ()


Protected Attributes

I2cWriteReadTransaction transaction


Detailed Description

template<typename I2cMaster>
class modm::Ams5915< I2cMaster >

Author
Raphael Lehman, Niklas Hauser

Constructor & Destructor Documentation

template<typename I2cMaster >
modm::Ams5915< I2cMaster >::Ams5915 ( Data &  data,
uint8_t  i2cAddress = 0x28
)
inline
Parameters
dataa ams5915::Data object

Member Function Documentation

void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::attachConfigurationHandler ( I2c::ConfigurationHandler  handler)
inheritedinline

Attaches a configuration handler, which is called before a transaction, whenever the configuration has to be changed.

bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::isTransactionRunning ( )
inheritedinlineprotected
Returns
true when transaction is busy.
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::ping ( )
inheritedinline
Return Values
truedevice responds to address
falseno device with address found
void modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::setAddress ( uint8_t  address)
inheritedinline

Sets a new address of the slave device.

Parameters
addressthe slave address not yet shifted left (address < 128).
bool modm::I2cDevice< I2cMaster, 10 , I2cWriteReadTransaction >::wasTransactionSuccessful ( )
inheritedinlineprotected
Returns
true when transaction did not return an error.
The documentation for this class was generated from the following file:
